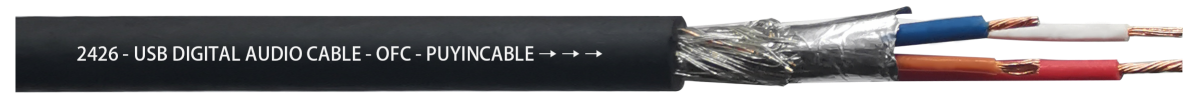

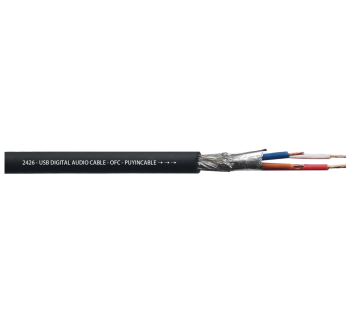

2426B
USB2.0 Cable
PVC Ø4.5m - 2*24AWG+2*26AWG
Part. No.: 24-0311
| General | |
| Part number : | 24-0311 |
| Cable model : | 2426B |
| Cable type : | USB Cable |
| Properties : | Digital |
| Conductor material : | OFC |
| Application area : | Stage / live |
| Application type : | Installation / indoor |
| Application of voltage : | Low voltage |
| Construction | |
| Jacket material : | PVC |
| Colour : | black |
| Jacket shape : | round |
| Jacket diameter [mm] : | 4.5 |
| Conductor : | 2*0.2mm²+2*0.14mm² |
| AWG : | 24+26 |
| Copper construction mm : | 7 × Ø 0.2(DC) & 18/Ø 0.1(DATE) |
| Weight kg/roll： | 7.9kg |
| Packing m/roll ： | 200 m |
| Min. bending radius : | 23 |
| Min. temperature [°C] : | -20 |
| Max. temperature [°C] : | 70 |
