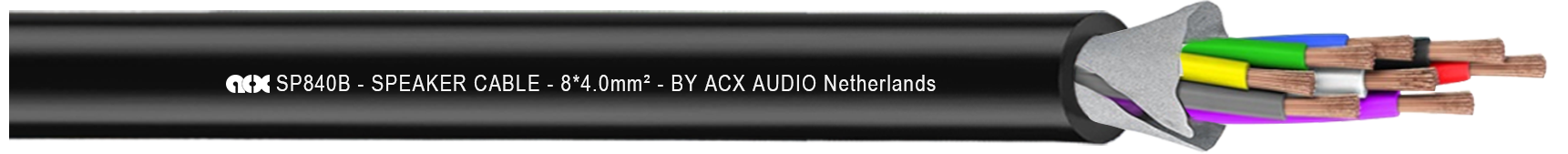

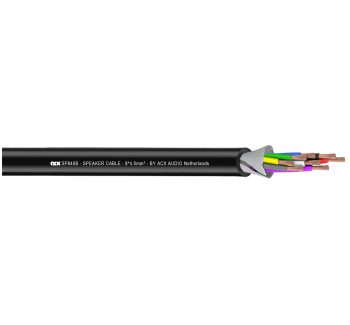

SP840B
Mobile Speaker Cable
PVC Ø15 mm - 8x4.00 mm²
Part. No.: BC0078
| General | |
| Part number : | BC0078 |
| Cable model : | SP840B |
| Cable type : | Speaker Cable |
| Properties : | Analog |
| Conductor material : | 99.95% Pure Copper |
| Application area : | Stage / live |
| Application type : | Installation |
| Application of voltage : | Low voltage |
| Standards : | CE/Rosh |
| Construction | |
| Jacket material : | PVC |
| Colour : | black |
| Jacket shape : | round |
| Jacket diameter [mm] : | 16.5 |
| Conductor : | 8 × 4.00 mm² |
| AWG : | 11 |
| Copper construction mm : | 120 × Ø 0.20 |
| Insulation material : | PVC |
| Insulation diameter [mm] : | 3.8 |
| Weight kg/roll： | 58KG |
| Packing m/roll ： | 100 |
| Min. bending radius | 83 |
| Min. temperature [°C] : | -40 |
| Max. temperature [°C] : | 70 |
| ElectricalData | |
| Capacitance pF/m | 135 |
| Conductor resistance Ω/km | < 4.5 |
| Max. operating voltage V | 300 |
