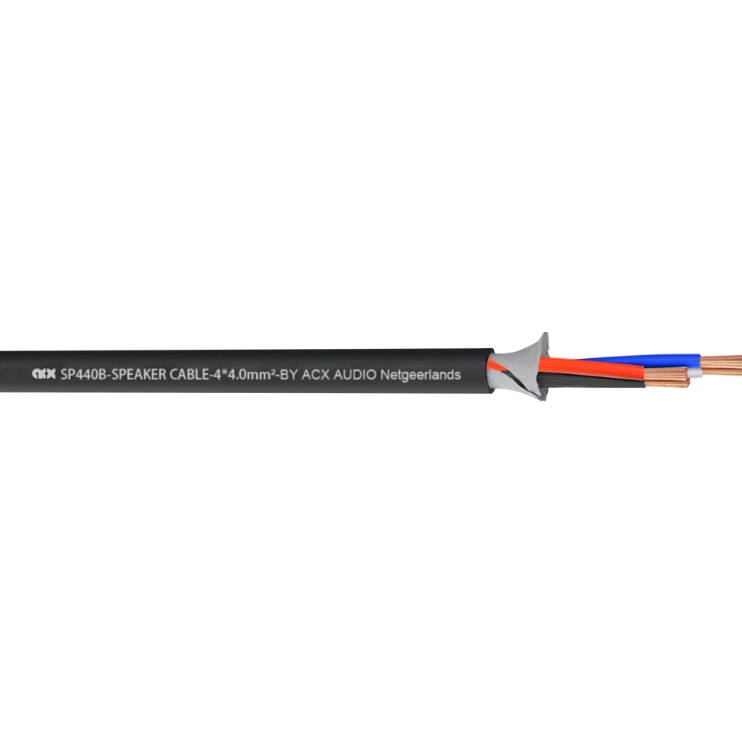

SP440B
Installation Speaker Cable
PVC Ø13.0 mm - 4x4.00 mm²
Part. No.: 23-0052
Installation Speaker Cable
PVC Ø13.0 mm - 4x4.00 mm²
Part. No.: 23-0052
General | |
Part number : | 23-0052 |
Cable model : | SP440B |
Cable type : | Speaker Cable |
Properties : | Analog |
Conductor material : | 99.95% Pure Copper |
Application area : | Stage / live |
Application type : | Installation |
Application of voltage : | Low voltage |
Construction | |
Jacket material : | PVC |
Colour : | black |
Jacket shape : | round |
Jacket diameter [mm] : | 13.0 |
Conductor : | 4 × 4.00 mm² |
AWG : | 11 |
Copper construction mm : | 128 × Ø 0.20 |
Weight Kg / roll : | 30 |
Packing m/ roll : | 100 |
Min. bending radius | 65 |
Min. temperature [°C] : | -40 |
Max. temperature [°C] : | 70 |
ElectricalData | |
Capacitance pF/m | 一 |
Conductor resistance Ω/km | < 5 |
Max. operating voltage V | 300 |
