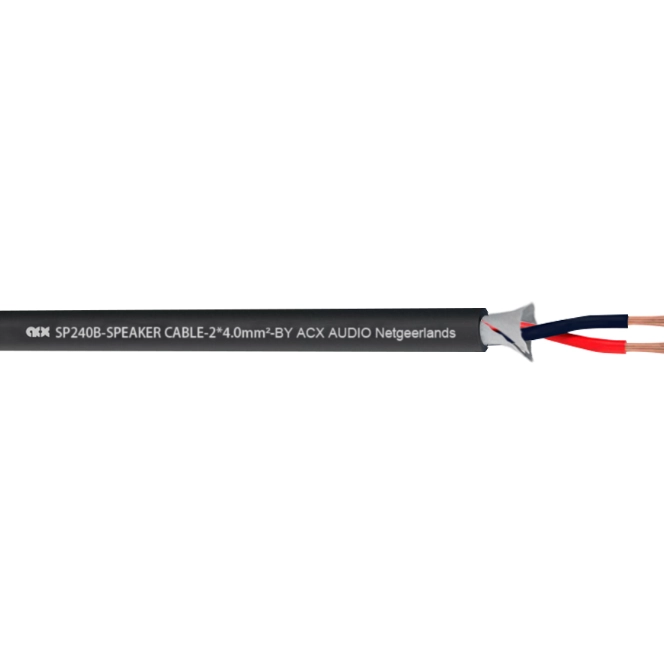

SP240B
Installation Speaker Cable
PVC Ø11 mm - 2x4.00 mm²
Part. No.: 23-0051
| General | |
| Part number : | 23-0051 |
| Cable model : | SP240B |
| Cable type : | Speaker Cable |
| Properties : | Analog |
| Conductor material : | 99.95% Pure Copper |
| Application area : | Stage / live |
| Application type : | Installation |
| Application of voltage : | Low voltage |
| Construction | |
| Jacket material : | PVC |
| Colour : | black |
| Jacket shape : | round |
| Jacket diameter [mm] : | 11.0 |
| Conductor : | 2 × 4.00 mm² |
| AWG : | 11 |
| Copper construction mm : | 128 × Ø 0.20 |
| Weight Kg / roll : | 17 |
| Packing m/ roll : | 100 |
| Min. bending radius | 55 |
| Min. temperature [°C] : | -20 |
| Max. temperature [°C] : | 70 |
| ElectricalData | |
| Capacitance pF/m | 一 |
| Conductor resistance Ω/km | < 5 |
| Max. operating voltage V | 300 |
