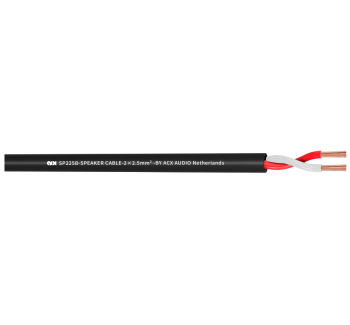

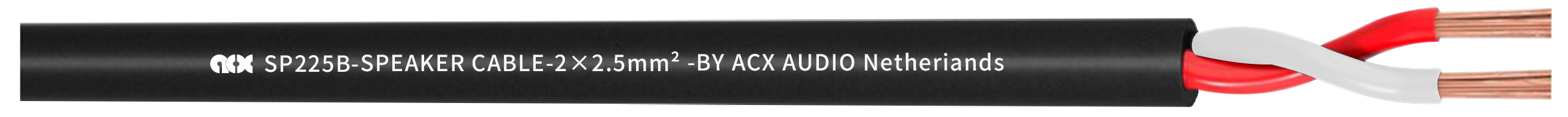

SP225B
Installation Speaker Cable SP225B
PUR Ø8.6mm - 2x13AWG
Part. No.: BC0049
| General | |
| Part number : | BC0049 |
| Cable model : | SP225B |
| Cable type : | Speaker Cable |
| Properties : | Analog |
| Conductor material : | 99.95% Copper |
| Application area : | Stage / live |
| Application type : | |
| Application of voltage : | Low voltage |
| Construction | |
| Insulation diameter [mm] : | 3.5 |
| Jacket material : | PVC |
| Colour : | gray |
| Jacket shape : | round |
| Jacket diameter [mm] : | 8.6 |
| Conductor : | 2 × 2.5 mm² |
| AWG : | 13 |
| Copper construction mm : | 80 × Ø 0.20 |
| Insulation material | PVC |
| Insulation diameter [mm] | 3.5 |
| Weight kg/roll： | 11.9kg |
| Packing m/roll ： | 100 |
| Min. bending radius | 42 |
| Min. temperature [°C] : | -20 |
| Max. temperature [°C] : | 70 |
| Electrical Data | |
| Capacitance pF/m | 163 |
| Conductor resistance Ω/km | <8.0 |
| Max. operating voltage V | 300 |
