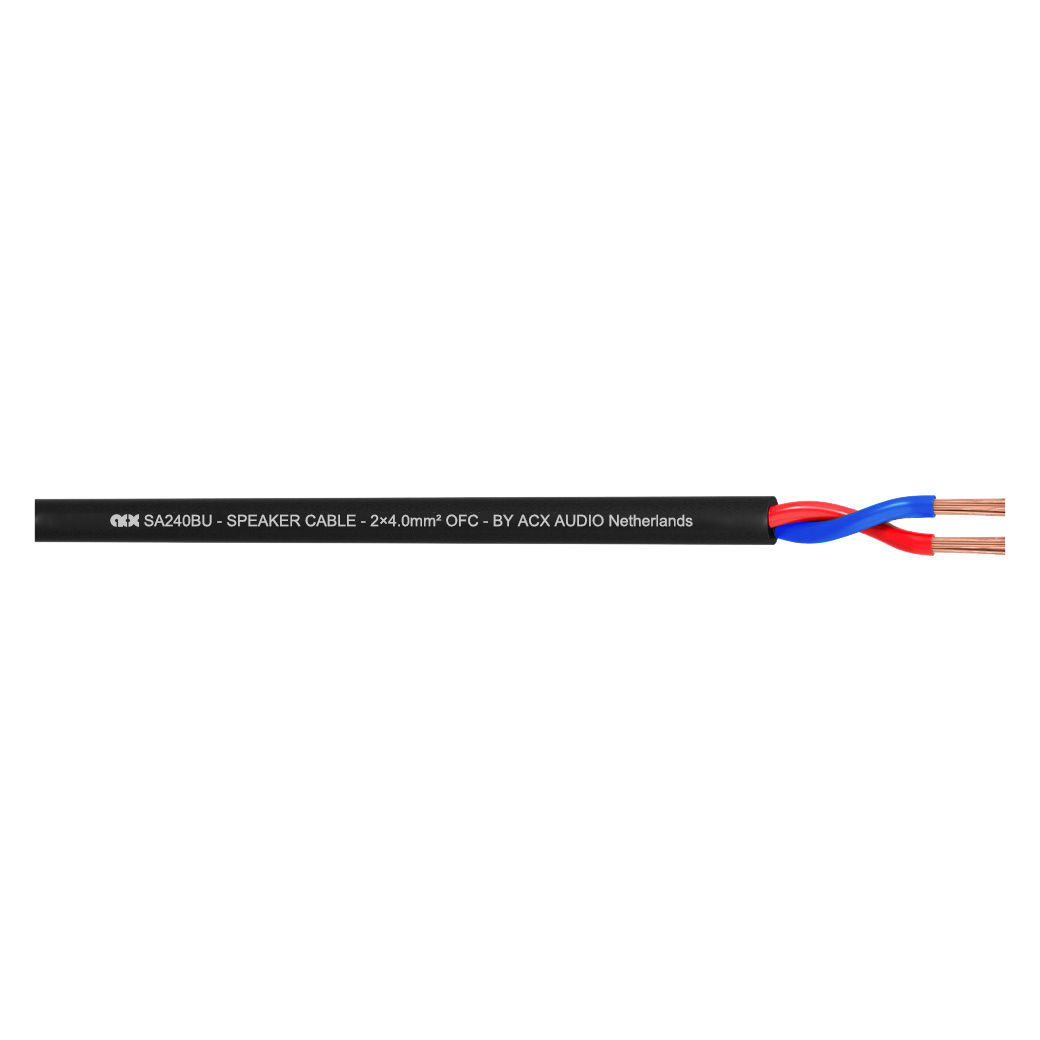

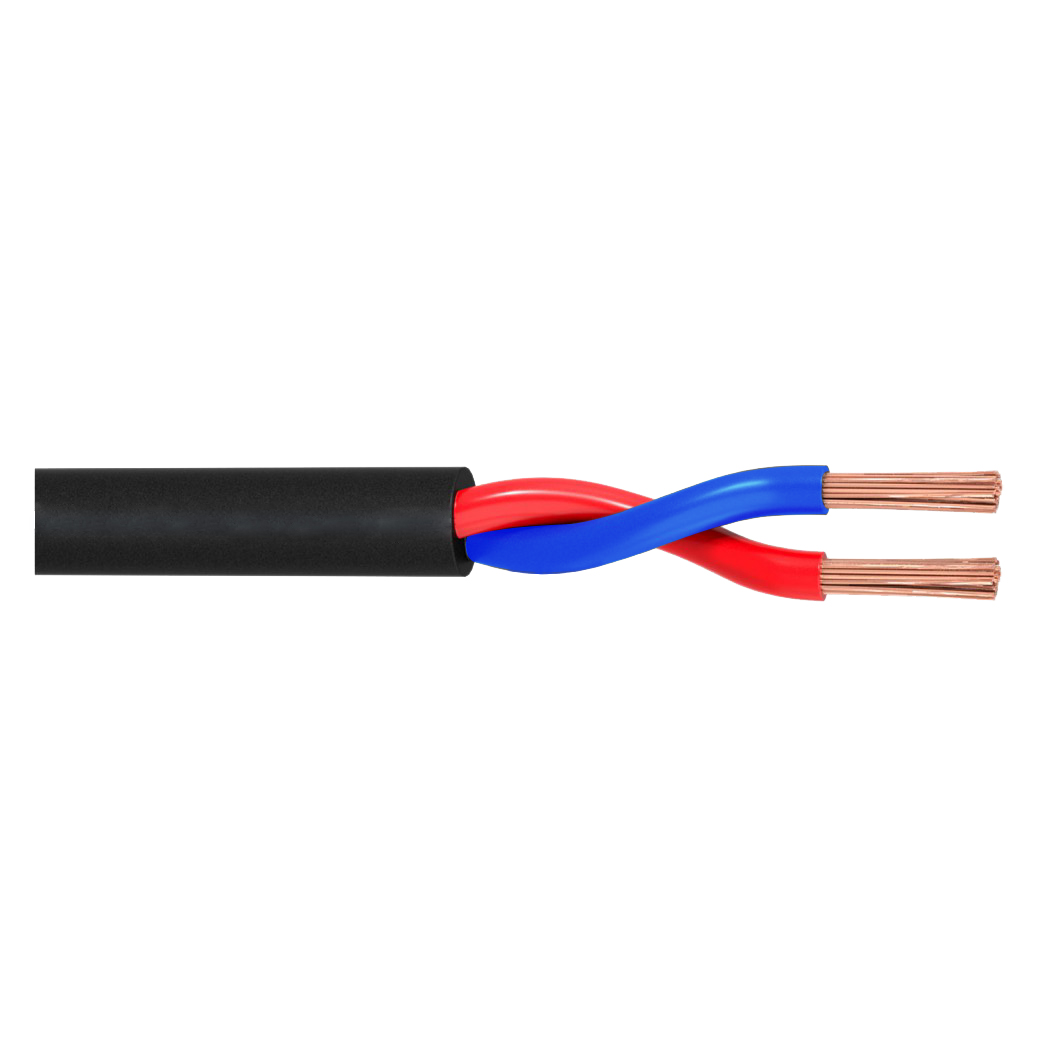

SA240BU
Mobile Speaker Cable
Ø10.5 mm - 2x4.00 mm² PUR
Part. No.: 23-0056
| General | |
| Part number | 23-0056 |
| Cable model | SA240BU |
| Cable type | Speaker Cable |
| Properties | Analog |
| Conductor material | OFC |
| Application area | Stage /live |
| Application type | Mobile outdoor /indoor |
| Application of voltage | Low voltage |
| Standards | Fca |
| Construction | |
| Jacket material | PUR |
| Colour | Black |
| Jacket shape | Round |
| Jacket diameter [mm] | 10.5 |
| Conductor | 2×4.00 mm² |
| AWG | 13 |
| Copper construction mm | 224×00.15 |
| Weight g/m | 178 |
| Packing m | 100 m |
| Min.bending radius | 53 |
| Min.temperature [°C] | -40 |
| Max.temperature [C] | 70 |
| Electrical Data | |
| Capacitance pF/m | 165 |
| Conductor resistance Q/km | <4.5 |
| Max.operating voltage V | 300 |
