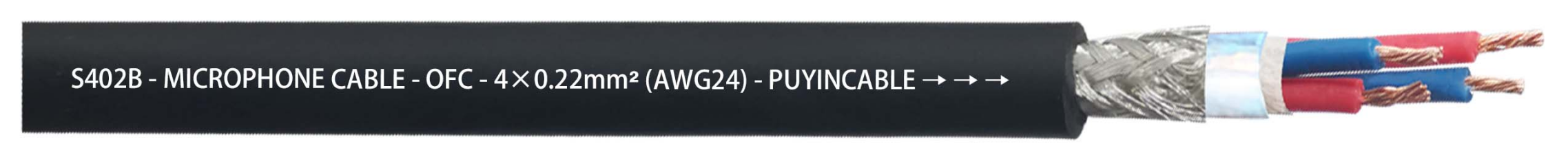

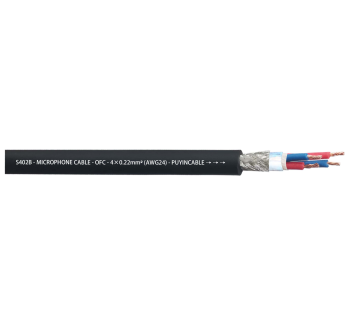

S402B
Installation Audio Cable
PVC Ø6.5 mm - 4x0.22 mm²
Part. No.: 24-0305
Installation Audio Cable
PVC Ø6.5 mm - 4x0.22 mm²
Part. No.: 24-0305
General | |
Part number : | 24-0305 |
Cable model : | S402B |
Cable type : | Audio Cable |
Properties : | Analog |
Conductor material : | OFC |
Application area : | Stage / live |
Application type : | Installation / indoor |
Application of voltage : | Low voltage |
Construction | |
Jacket material : | PVC |
Colour : | black |
Jacket shape : | round |
Jacket diameter [mm] : | 6.5 |
Conductor : | 4 × 0.22 mm² |
AWG : | 24 |
Copper construction mm : | 11 × Ø 0.16 |
Weight kg/roll: | 12.67kg |
Packing m/roll : | 200 |
Min. bending radius : | 33 |
Min. temperature [°C] : | -20 |
Max. temperature [°C] : | 70 |
Electrical Data | |
Capacitance pF/m | 51 |
Conductor resistance Ω/km | <85 |
Max. operating voltage V | 300 |
