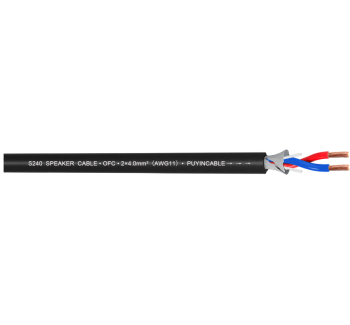

S240
HiFi Speaker Cable S240
PVC Ø11.0 mm - 2x4.00 mm²
Part. No.: 24-0324
| General | |
| Part number : | 24-0324 |
| Cable model : | S240 |
| Cable type : | Speaker Cable |
| Properties : | Analog |
| Conductor material : | OFC |
| Application area : | Stage / live |
| Application type : | Mobile outdoor / indoor |
| Application of voltage : | Low voltage |
| Construction | |
| Jacket material : | PVC |
| Colour : | black |
| Jacket shape : | round |
| Jacket diameter [mm] : | 11.0 |
| Conductor : | 2 × 4.00 mm² |
| AWG : | 11 |
| Copper construction mm : | 224 × Ø 0.15 |
| Weight kg/roll： | 16.3kg |
| Packing m/roll ： | 100 |
| Min. bending radius | 55 |
| Min. temperature [°C] : | -20 |
| Max. temperature [°C] : | 70 |
| Electrical Data | |
| Capacitance pF/m | - |
| Conductor resistance Ω/km | <4.6 |
| Max. operating voltage V | 300 |
