S225

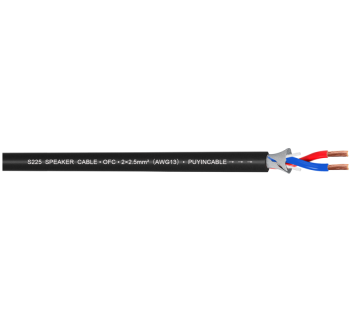

HiFi Speaker Cable S225
PVC Ø9.0mm - 2x2.50 mm²
Part. No.: 24-0323
| General | |
| Part number : | 24-0323 |
| Cable model : | S225 |
| Cable type : | Speaker Cable |
| Properties : | Analog |
| Conductor material : | OFC |
| Application area : | Stage / live |
| Application type : | Mobile outdoor / indoor |
| Application of voltage : | Low voltage |
| Construction | |
| Jacket material : | PVC |
| Colour : | black |
| Jacket shape : | round |
| Jacket diameter [mm] : | 9 |
| Conductor : | 2 × 2.50 mm² |
| AWG : | 13 |
| Copper construction mm : | 120 × Ø 0.15 + 7× Ø0.254 |
| Weight kg/roll： | 10.9kg |
| Packing m/roll ： | 100 |
| Min. bending radius | 45 |
| Min. temperature [°C] : | -20 |
| Max. temperature [°C] : | 70 |
| Electrical Data | |
| Capacitance pF/m | TBD |
| Conductor resistance Ω/km | <7.5 |
| Max. operating voltage V | 300 |
