S201B

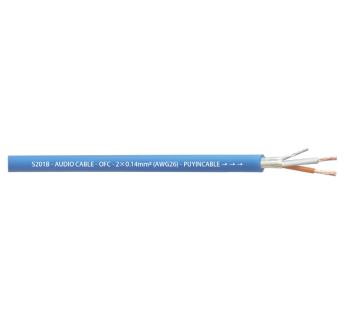

Analog Cable S201B
PVC Ø3.2mm - 2x0.14 mm²
Part. No.: 24-0301
| General | |
| Part number : | 24-0301 |
| Cable model : | S201B |
| Cable type : | Analog Cable |
| Properties : | Analog |
| Conductor material : | OFC |
| Application area : | AV/audio |
| Application type : | indoor |
| Application of voltage : | Low voltage |
| Construction | |
| Jacket material : | PUR |
| Colour : | black or blue |
| Jacket shape : | round |
| Jacket diameter [mm] : | 3.2 |
| Conductor : | 2 × 0.14 mm² |
| AWG : | 26 |
| Copper construction mm : | 18 × Ø 0.10 |
| Weight kg/roll： | 3.4kg |
| Packing m/roll ： | 200 |
| Min. bending radius : | 16 |
| Min. temperature [°C] : | -40 |
| Max. temperature [°C] : | 70 |
| Electrical Data | |
| Capacitance pF/m | 68 |
| Conductor resistance Ω/km | <125 |
| Max. operating voltage V | 300 |
