MC402BU

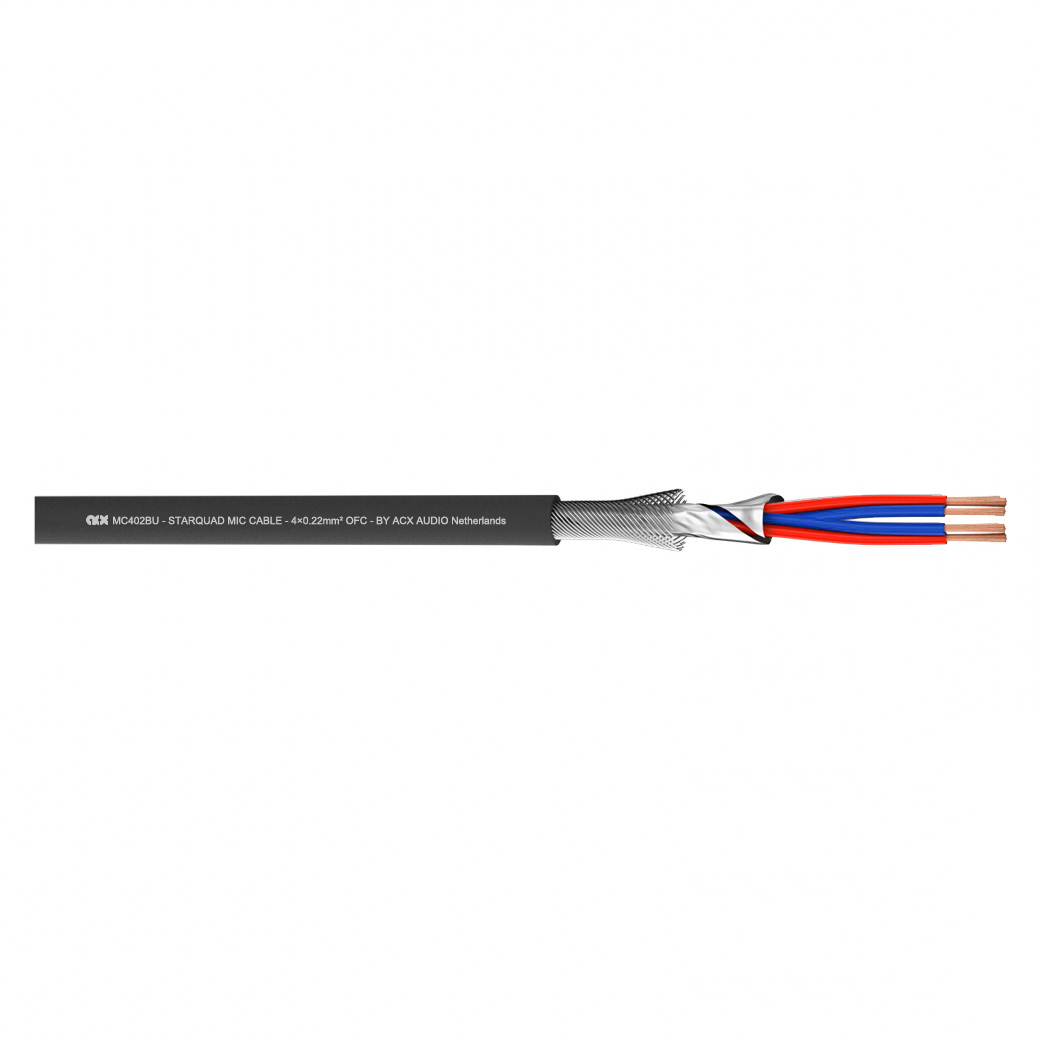

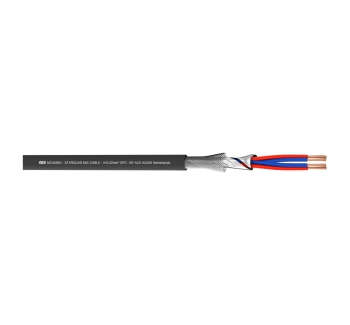

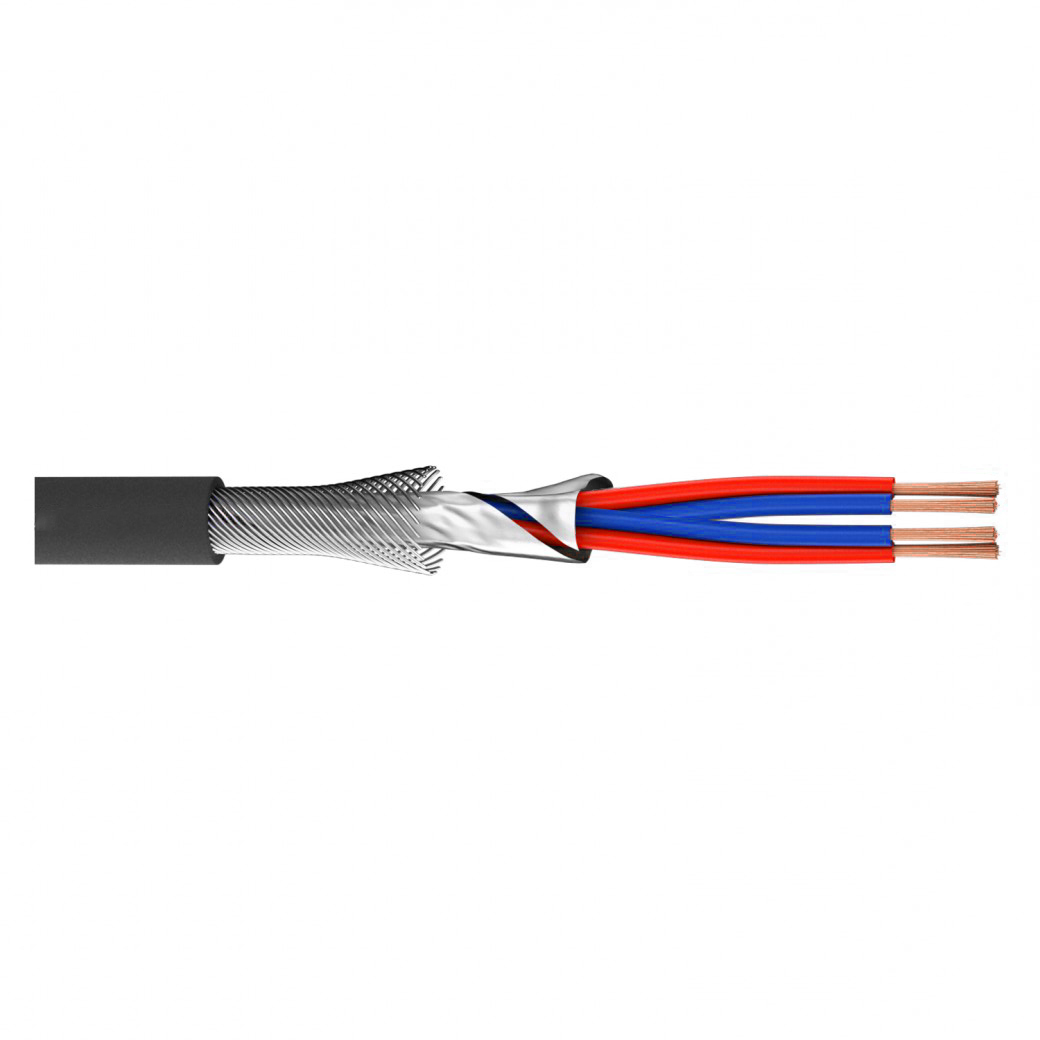

Microphone Cable MC402BU
PUR Ø6.5 mm - 4x0.2 mm²
Part. No.: 23-0008
Microphone Cable MC402BU
PUR Ø6.5 mm - 4x0.2 mm²
Part. No.: 23-0008
General | |
Part number | 23-0008 |
Cable model | MC402BU |
Cable type | Microphone Cable |
Properties | Analog |
Conductor material | OFC |
Application area | Stage /live |
Application type | Mobile outdoor /indoor |
Application of voltage | Low voltage |
Standards | Fca |
Construction | |
Jacket material | PUR |
Colour | Black |
Jacket shape | Round |
Jacket diameter [mm] | 6.5 |
Conductor | 2 x 0.2 mm² |
AWG | 24 |
Copper construction mm | 105×0.05 |
Weight g/m | 60 |
Packing m | 200 m |
Min.bending radius | 33 |
Min.temperature [C] | -40 |
Max.temperature [C] | 70 |
Electrical Data | |
Capacitance pF/m | 50 |
Conductor resistance Q/km | <85 |
Max.operating voltage V | 300 |
