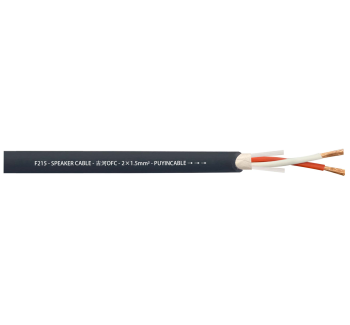

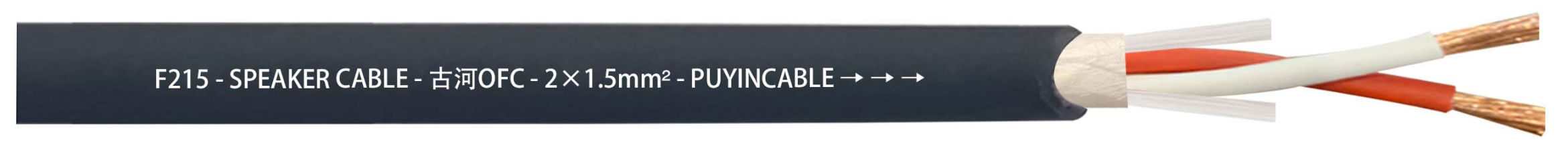

F215B
Mobile Speaker Cable
PUR Ø7.5mm - 2x1.50 mm²
Part. No.: 24-0318
Mobile Speaker Cable
PUR Ø7.5mm - 2x1.50 mm²
Part. No.: 24-0318
General | |
Part number : | 24-0318 |
Cable model : | F215B |
Cable type : | Speaker Cable |
Properties : | Analog |
Conductor material : | Furukawa OFC |
Application area : | Stage / live |
Application type : | Fixed Installation |
Application of voltage : | Low voltage |
Construction | |
Jacket material : | PVC |
Colour : | black |
Jacket shape : | round |
Jacket diameter [mm] : | 7.5 |
Conductor : | 2 × 2.50 mm² |
AWG : | 15 |
Copper construction mm : | 27 × Ø 0.254 |
Weight kg/roll: | 8.7kg |
Packing m/roll : | 100 |
Min. bending radius : | 42 |
Min. temperature [°C] : | -20 |
Max. temperature [°C] : | 70 |
Electrical Data | |
Capacitance pF/m | 99 |
Conductor resistance Ω/km | <13 |
Max. operating voltage V | 300 |
