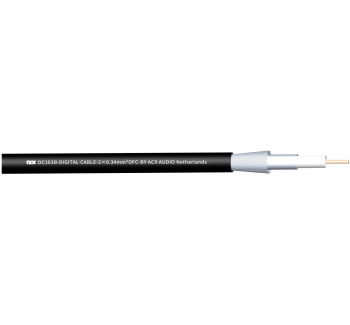

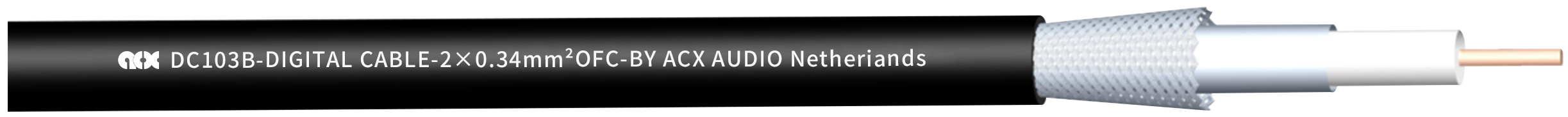

DC103B
Digital Cable
PVC Ø7 mm - 1x0.34 mm²
Part. No.: BC0015
| General | |
| Part number : | BC0015 |
| Cable model: | DC103B |
| Cable type; | Coaxial Cable |
| Properties: | Digital |
| Conductor material: | OFC |
| Application area: | AV/audio |
| Application type: | Indoor |
| Application of voltage: | Low voltage |
| Standards: | CE/Rosh |
| Construction | |
| Jacket material : | PVC |
| Colour | black |
| Jacket shape; | round |
| Jacket diameter [mm]: | 7 |
| Conductor ; | 1×0.34 mm² |
| AWG: | 22 |
| Copper construction mm: | 7 × Ø 0.25 |
| Insulation material : | Foam/skin-PE |
| Conductor shielding: | Tined copper braided + PT AL foi |
| Weight kg/roll: | 6.4kg |
| Packing m/roll: | 200 m |
| Min.bending radius | 35 |
| Min.temperature [C]: | -20 |
| Max.temperature [C]: | 70 |
| Electrical Data | |
| Capacitance pF/m | 80 |
| Conductor resistance Ω/km | <60 |
| Max.operating voltage V | 300 |
