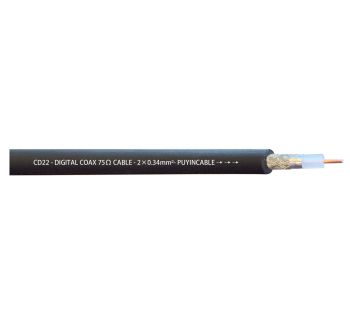

CD22
Digital Cable CD22
PVC Ø6.5 mm - 1x0.34 mm²
Part. No.: 24-0310
| General | |
| Part number : | 24-0310 |
| Cable model : | CD22 |
| Cable type : | Coaxial Cable |
| Properties : | Digital |
| Conductor material : | OFC |
| Application area : | AV/audio |
| Application type : | indoor |
| Application of voltage : | Low voltage |
| Construction | |
| Jacket material : | PVC |
| Colour : | black |
| Jacket shape : | round |
| Jacket diameter [mm] : | 6.5 |
| Conductor : | 1 × 0.34mm² |
| AWG : | 22 |
| Copper construction mm : | 7 × Ø 0.25 |
| Weight kg/roll： | 50 |
| Packing m/roll ： | 200 |
| Min. bending radius : | 33 |
| Min. temperature [°C] : | -20 |
| Max. temperature [°C] : | 70 |
| Electrical Data | |
| Impedence Ω | 75 |
| Conductor resistance Ω/km | <60 |
| Max. operating voltage V | 300 |
