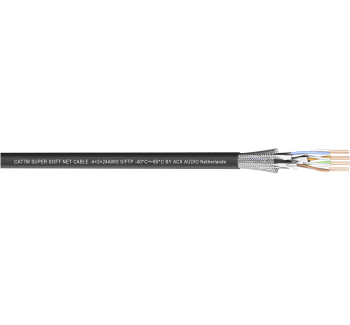

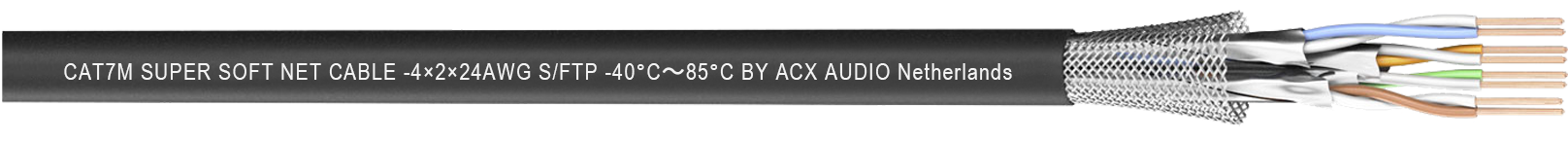

CAT7M
Installationl LAN Cable
PUR Ø8.5mm - 4x2xAWG23
Part. No.: BC0022
| General | |
| Part number : | BC0022 |
| Cable model : | CAT7M |
| Cable type : | Cat7 LAN Cable |
| Properties : | Digital |
| Conductor material : | OFC |
| Application area : | AV/DANTE AES |
| Application type : | Mobile outdoor / indoor |
| Application of voltage : | Low voltage |
| Standards : | IEC60754-1 |
| Construction | |
| Jacket material : | PUR |
| Colour : | black |
| Jacket shape : | round |
| Jacket diameter [mm] : | 8.5 |
| Conductor : | 4 × 2 × 0.27mm² |
| AWG : | 23AWG |
| Copper construction mm : | 35 × Ø 0.10 |
| Shielding type : | SFTP |
| Weight kg/roll： | 23kg |
| Packing m/roll ： | 305 |
| Min. bending radius | 51 |
| Min. temperature [°C] : | -40 |
| Max. temperature [°C] : | 70 |
