AC1000

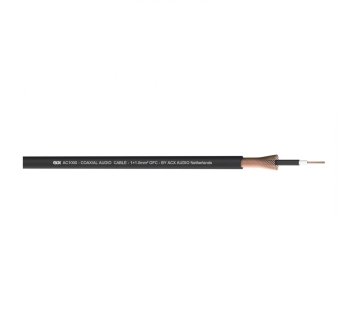

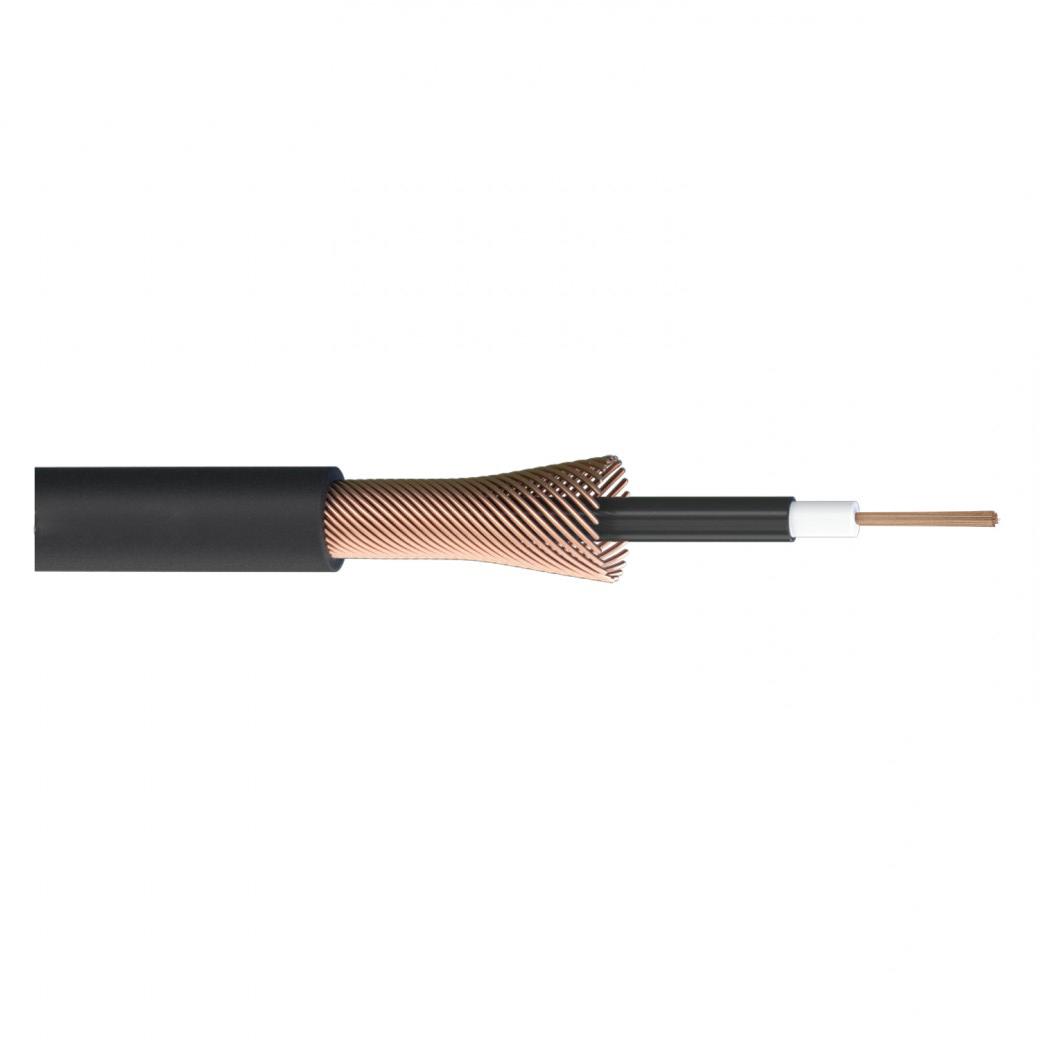

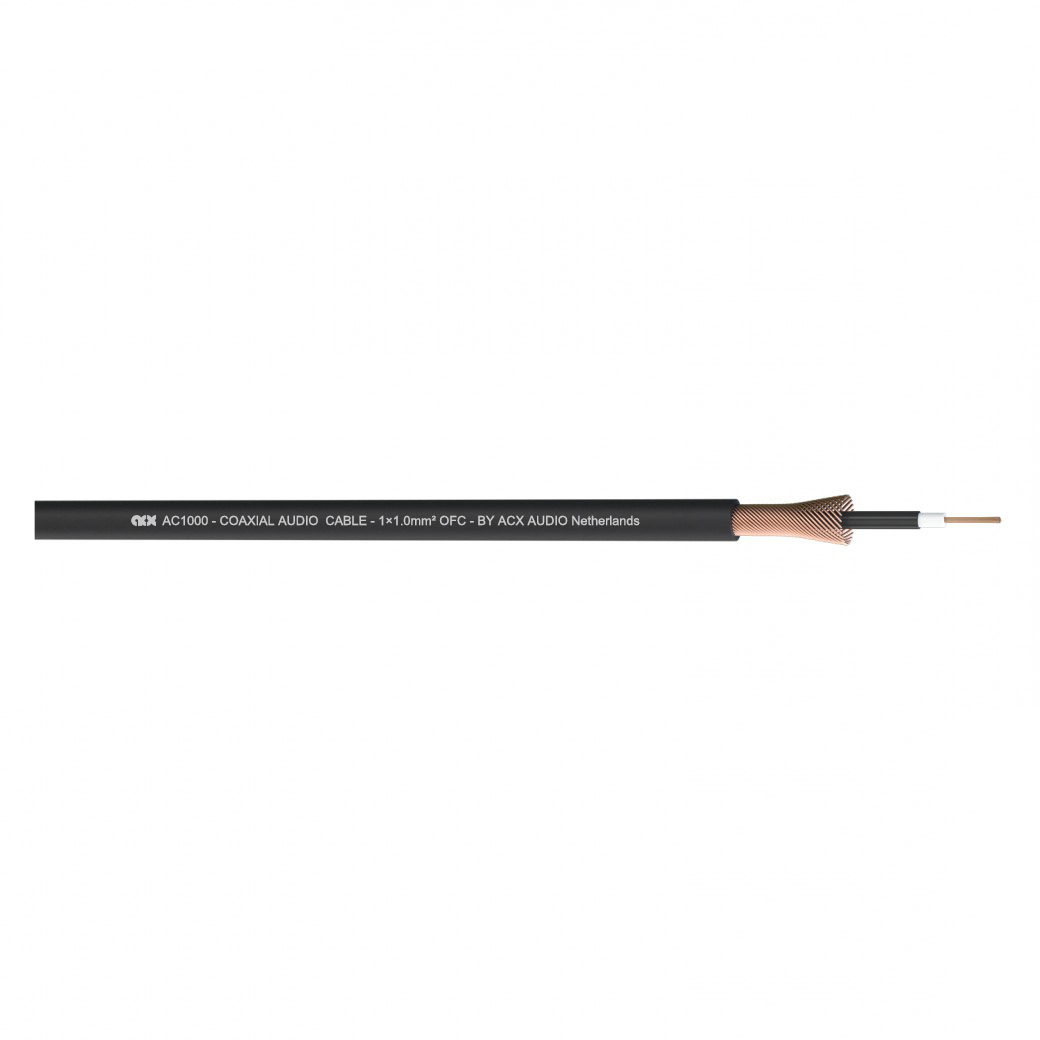

Analog Cable AC1000
PVC Ø6 mm - 1x1.0 mm²
Part. No.: 23-0010
| General | |
| Part number: | 23-0010 |
| Cable model: | AC1000 |
| Cable type; | Analog Cable |
| Properties: | Analog |
| Conductor material: | OFC |
| Application area: | Guitar/audio |
| Application type: | Indoor |
| Application of voltage: | Low voltage |
| Standards: | Fca |
| Construction | |
| Jacket material : | PVC |
| Colour | black |
| Jacket shape; | round |
| Jacket diameter [mm]: | 6 |
| Conductor ; | 1×1.0 mm² |
| AWG: | 17 |
| Copper construction mm: | 128× Ø 0.10 |
| Weight kg/roll | 50 |
| Packing m/roll | 200 |
| Min.bending radius | 30 |
| Min.temperature [C]: | -20 |
| Max.temperature [C]: | 70 |
| Electrical Data | |
| Capacitance pF/m | 160 |
| Conductor resistance Ω/km | <19 |
| Max.operating voltage V | 300 |
