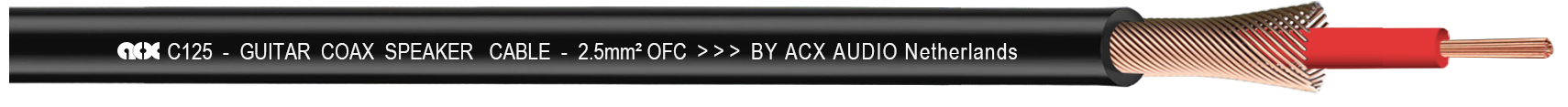

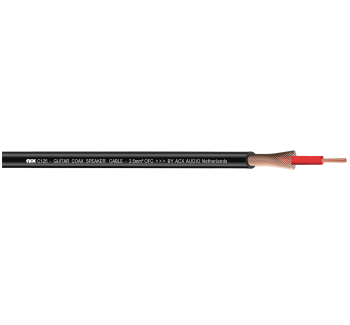

C125
Installation Speaker Cable
PVC Ø7 mm - 1x2.50 mm²
Part. No.: BC0068
| General | |
| Part number : | BC0068 |
| Cable model : | C125 |
| Cable type : | Coaxial Speaker Cable |
| Properties : | Analog |
| Conductor material : | OFC |
| Application area : | Instrument /audio |
| Application type : | Mobile indoor |
| Application of voltage : | Low voltage |
| Standards : | CE/Rosh |
| Construction | |
| Jacket material : | S-PVC |
| Colour : | gray |
| Jacket shape : | round |
| Jacket diameter [mm] : | 6.5 |
| Conductor : | 1 × 2.50mm² |
| AWG : | 22 |
| Copper construction mm : | 140 × Ø 0.15 |
| Insulation material : | PVC |
| Conductor shielding: | Copper spiral |
| Weight kg/roll : | 8.4kg |
| Packing m/roll ： | 100 |
| Min. bending radius : | 33 |
| Min. temperature [°C] : | -20 |
| Max. temperature [°C] : | 70 |
| Electrical Data | |
| Conductor resistance Ω/km | <5.5 |
| Max. operating voltage V | 300 |
