C110

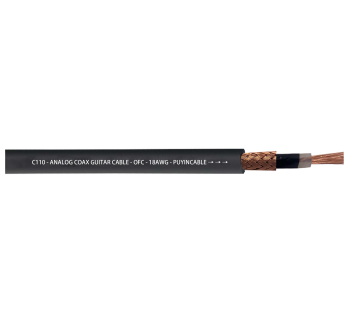

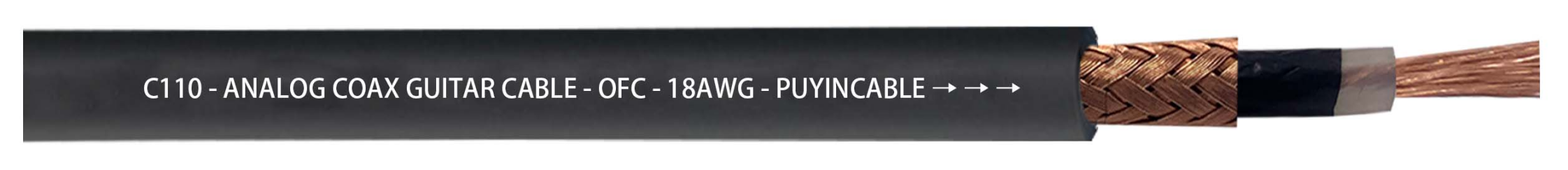

Analog Coax cable C110
PVC Ø6 mm - 1x1.0 mm²
Part. No.: 24-0307
| General | |
| Part number : | 24-0307 |
| Cable model : | C110 |
| Cable type : | Analog Cable |
| Properties : | Analog |
| Conductor material : | OFC |
| Application area : | Guitar/audio |
| Application type : | indoor |
| Application of voltage : | Low voltage |
| Construction | |
| Jacket material : | PVC |
| Colour : | black |
| Jacket shape : | round |
| Jacket diameter [mm] : | 6.5 |
| Conductor : | 1 × 1.0 mm² |
| AWG : | 18 |
| Copper construction mm : | 128 × Ø 0.10 |
| Weight kg/roll： | 11.16kg |
| Packing m/roll ： | 200 |
| Min. bending radius : | 33 |
| Min. temperature [°C] : | -20 |
| Max. temperature [°C] : | 70 |
| Electrical Data | |
| Capacitance pF/m | 303 |
| Conductor resistance Ω/km | <20 |
| Max. operating voltage V | 300 |
