C102

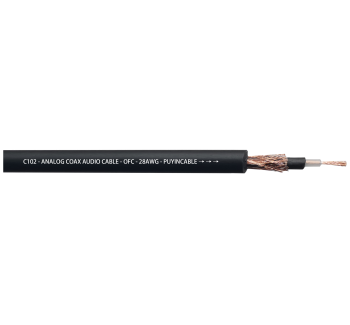

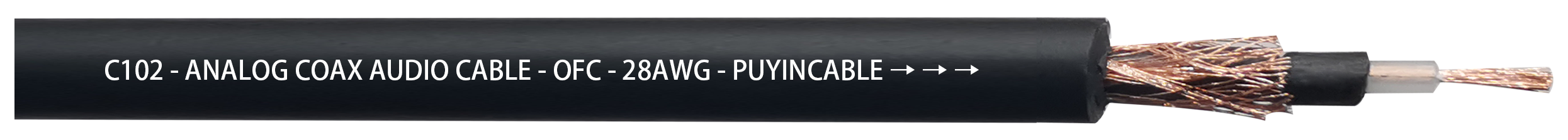

Analog Coax Cable C102
PVC Ø6.0m - 1x0.22 mm²
Part. No.: 24-0306
| General | |
| Part number : | 24-0306 |
| Cable model : | C102 |
| Cable type : | Audio Cable |
| Properties : | Analog |
| Conductor material : | OFC |
| Application area : | Stage / live |
| Application type : | Installation / indoor |
| Application of voltage : | Low voltage |
| Construction | |
| Jacket material : | PVC |
| Colour : | black |
| Jacket shape : | round |
| Jacket diameter [mm] : | 6 |
| Conductor : | 1 × 0.22 mm² |
| AWG : | 24 |
| Copper construction mm : | 30 × Ø 0.10 |
| Weight kg/roll： | 9.1kg |
| Packing m/roll ： | 200 |
| Min. bending radius : | 30 |
| Min. temperature [°C] : | -20 |
| Max. temperature [°C] : | 70 |
| Electrical Data | |
| Capacitance pF/m | 128 |
| Conductor resistance Ω/km | <85 |
| Max. operating voltage V | 300 |
