B825

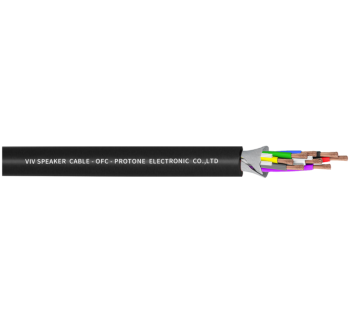

Installation Speaker Cable B825
PUR Ø16.0mm - 8x13AWG
Part. No.: 24-0318
| General | |
| Part number : | 24-0318 |
| Cable model : | B825 |
| Cable type : | Speaker Cable |
| Properties : | Analog |
| Conductor material : | 99.95% Copper |
| Application area : | Stage / live |
| Application type : | Fixed installation |
| Application of voltage : | Low voltage |
| Construction | |
| Jacket material : | PVC |
| Colour : | BLACK |
| Jacket shape : | Round |
| Jacket diameter [mm] : | 16 |
| Conductor : | 8 × 2.5 mm² |
| AWG : | 13 |
| Copper construction mm : | 80 × Ø 0.20 |
| Weight kg/roll： | 46.1 kg |
| Packing m/roll ： | 100 |
| Min. bending radius | 42 |
| Min. temperature [°C] : | -20 |
| Max. temperature [°C] : | 70 |
| Electrical Data | |
| Capacitance pF/m | 130 |
| Conductor resistance Ω/km | <9 |
| Max. operating voltage V | 300 |
