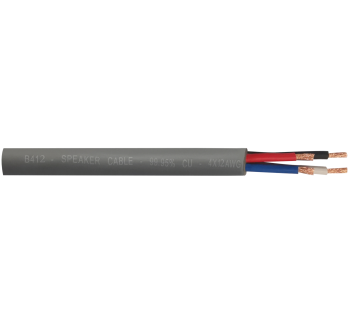

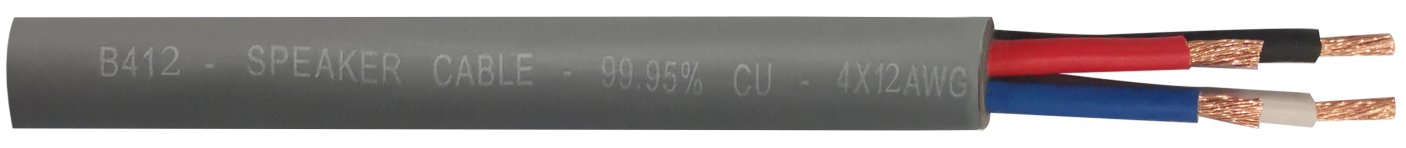

B412B
Installation Speaker Cable
PVC Ø12.0 mm - 4x12AWG
Part. No.: 24-0317
Installation Speaker Cable
PVC Ø12.0 mm - 4x12AWG
Part. No.: 24-0317
General | |
Part number : | 24-0317 |
Cable model : | B412B |
Cable type : | Speaker Cable |
Properties : | Analog |
Conductor material : | 99.95% Copper |
Application area : | Stage / live |
Application type : | Fixed Installation |
Application of voltage : | Low voltage |
Construction | |
Jacket material : | PVC |
Colour : | gray |
Jacket shape : | Twist |
Jacket diameter [mm] : | 12 |
Conductor : | 4 × 3.30 mm² |
AWG : | 13 |
Copper construction mm : | 105 × Ø 0.20 |
Weight kg/roll : | 25.2kg |
Packing m/roll : | 100 |
Min. bending radius : | 55 |
Min. temperature [°C] : | -20 |
Max. temperature [°C] : | 70 |
Electrical Data | |
Capacitance pF/m | 134 |
Conductor resistance Ω/km | <5.5 |
Max. operating voltage V | 300 |
