B411

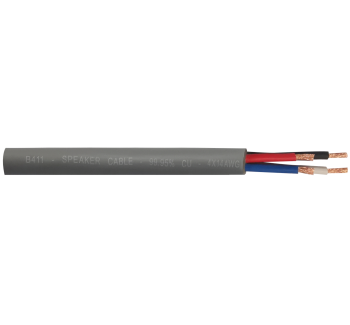

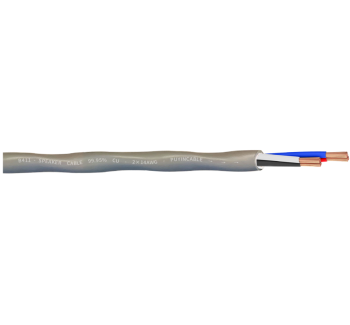

Installation Speaker Cable B411
PUR Ø11.0mm - 4x14AWG
Part. No.: 24-0316
| General | |
| Part number : | 24-0316 |
| Cable model : | B411 |
| Cable type : | Speaker Cable |
| Properties : | Analog |
| Conductor material : | 99.95% Copper |
| Application area : | Stage / live |
| Application type : | Fixed Installation |
| Application of voltage : | Low voltage |
| Standards : | Fca |
| Construction | |
| Jacket material : | PVC |
| Colour : | gray |
| Jacket shape : | Twist |
| Jacket diameter [mm] : | 11 |
| Conductor : | 4 × 2.20 mm² |
| AWG : | 14 |
| Copper construction mm : | 168 × Ø 0.12 |
| Weight kg/roll： | 17.9kg |
| Packing m/roll ： | 100 |
| Min. bending radius : | 42 |
| Min. temperature [°C] : | -20 |
| Max. temperature [°C] : | 70 |
| Electrical Data | |
| Capacitance pF/m | 130 |
| Conductor resistance Ω/km | <9 |
| Max. operating voltage V | 300 |
