B211

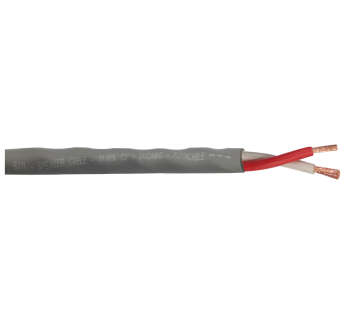

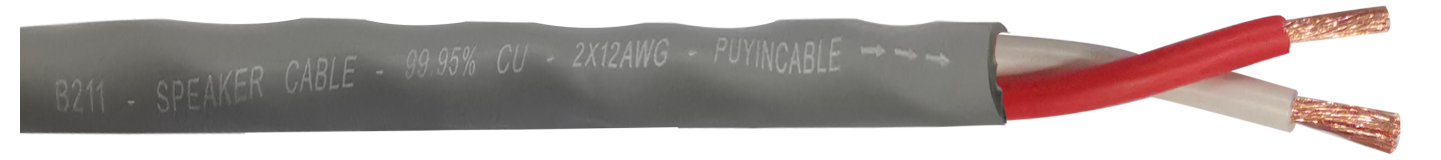

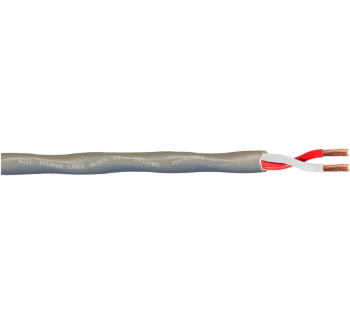

Installation Speaker Cable B211
PVC Ø11.0mm - 2x12AWG
Part. No.: 24-0315
| General | |
| Part number : | 24-0315 |
| Cable model : | B211 |
| Cable type : | Speaker Cable |
| Properties : | Analog |
| Conductor material : | 99.95% Copper |
| Application area : | Stage / live |
| Application type : | Fixed Installation |
| Application of voltage : | Low voltage |
| Construction | |
| Jacket material : | PVC |
| Colour : | gray |
| Jacket shape : | Twist |
| Jacket diameter [mm] : | 11 |
| Conductor : | 2 × 3.30 mm² |
| AWG : | 12 |
| Copper construction mm : | 105 × Ø 0.20 |
| Weight kg/roll : | 14.3kg |
| Packing m/roll ： | 100 |
| Min. bending radius | 55 |
| Min. temperature [°C] : | -20 |
| Max. temperature [°C] : | 70 |
| Electrical Data | |
| Capacitance pF/m | 113 |
| Conductor resistance Ω/km | <5.5 |
| Max. operating voltage V | 300 |
