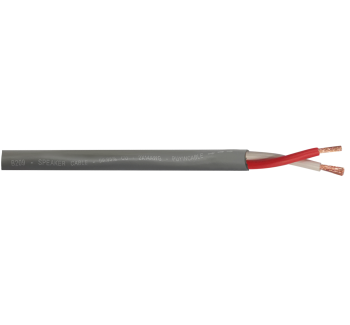

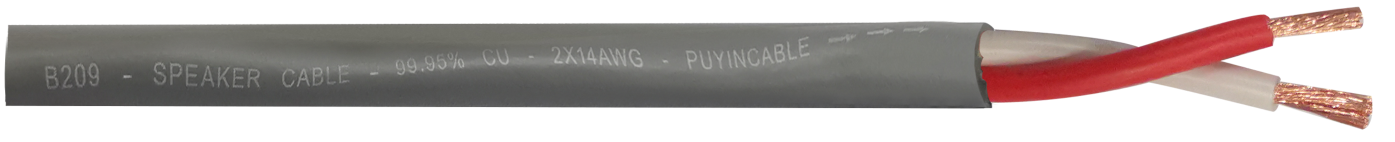

B209B
Installation Speaker Cable
PUR Ø8.6mm - 2x14AWG
Part. No.: 24-0314
| General | |
| Part number : | 24-0314 |
| Cable model : | B209B |
| Cable type : | Speaker Cable |
| Properties : | Analog |
| Conductor material : | 99.95% Copper |
| Application area : | Stage / live |
| Application type : | Fixed Installation |
| Application of voltage : | Low voltage |
| Construction | |
| Jacket material : | PVC |
| Colour : | gray |
| Jacket shape : | Twist |
| Jacket diameter [mm] : | 8.6 |
| Conductor : | 2 × 2.20 mm² |
| AWG : | 14 |
| Copper construction mm : | 168 × Ø 0.12 |
| Weight kg/roll： | 9.8kg |
| Packing m/roll ： | 100 |
| Min. bending radius | 42 |
| Min. temperature [°C] : | -20 |
| Max. temperature [°C] : | 70 |
| Electrical Data | |
| Capacitance pF/m | 87 |
| Conductor resistance Ω/km | <9 |
| Max. operating voltage V | 300 |
