B207

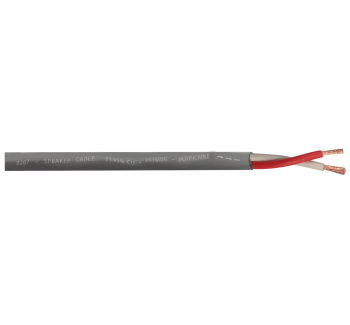

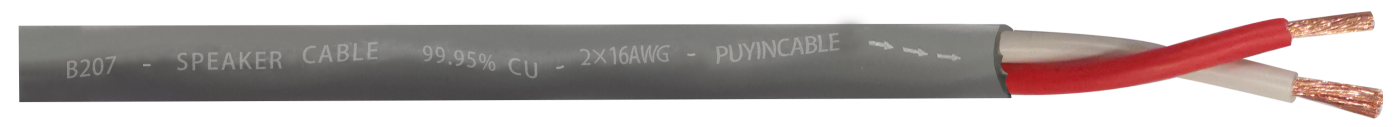

Installation Speaker Cable B207
PVC Ø7.0 mm - 2x16AWG
Part. No.: 24-0313
| General | |
| Part number : | 24-0313 |
| Cable model : | B207 |
| Cable type : | Speaker Cable |
| Properties : | Analog |
| Conductor material : | 99.95% Copper |
| Application area : | Stage / live |
| Application type : | Fixed Installation |
| Application of voltage : | Low voltage |
| Construction | |
| Jacket material : | PVC |
| Colour : | gray |
| Jacket shape : | Twist |
| Jacket diameter [mm] : | 7.0 |
| Conductor : | 2 × 1.31 mm² |
| AWG : | 16 |
| Copper construction mm : | 112 × Ø 0.12 |
| Weight kg/roll： | 7.7kg |
| Packing m/roll ： | 100 |
| Min. bending radius : | 35 |
| Min. temperature [°C] : | -20 |
| Max. temperature [°C] : | 70 |
| Electrical Data | |
| Capacitance pF/m | 88 |
| Conductor resistance Ω/km | <15 |
| Max. operating voltage V | 300 |
