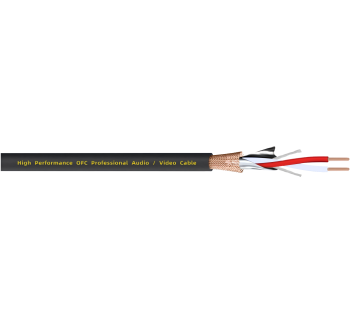

B206

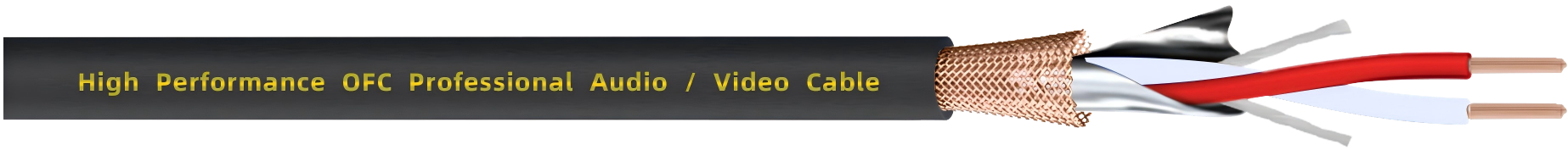

Analog Cable B206
PVC Ø6 mm - 2x0.3 mm²
Part. No.: 24-0305
| General | |
| Part number : | 10050 |
| Cable model : | B206 |
| Cable type : | Microphone Cable |
| Properties : | Analog |
| Conductor material : | 99.95% Copper |
| Application area : | Stage / live |
| Application type : | Mobile outdoor / indoor |
| Application of voltage : | Low voltage |
| Construction | |
| Jacket material : | PVC |
| Colour : | black |
| Jacket shape : | round |
| Jacket diameter [mm] : | 6 |
| Conductor : | 2 × 0.3 mm² |
| AWG : | 22 |
| Copper construction mm : | 28 × Ø 0.12 |
| Shielding material: | 6 × 16 Ø 0.10 |
| Weight g/m : | 11.9kg |
| Packing m : | 200 |
| Min. bending radius | 30 |
| Min. temperature [°C] : | -20 |
| Max. temperature [°C] : | 70 |
| Electrical Data | |
| Capacitance pF/m | 150 |
| Conductor resistance Ω/km | <55 |
| Max. operating voltage V | 300 |
