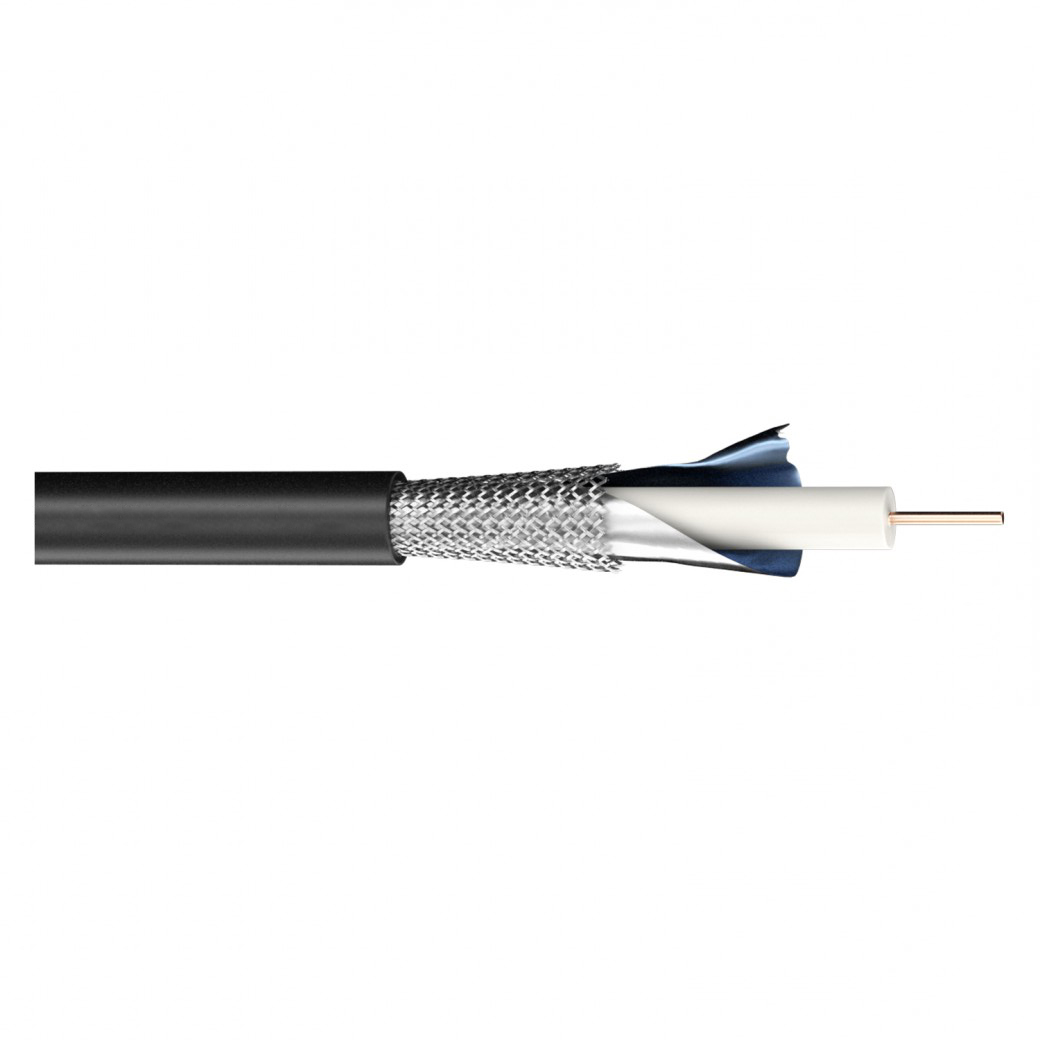

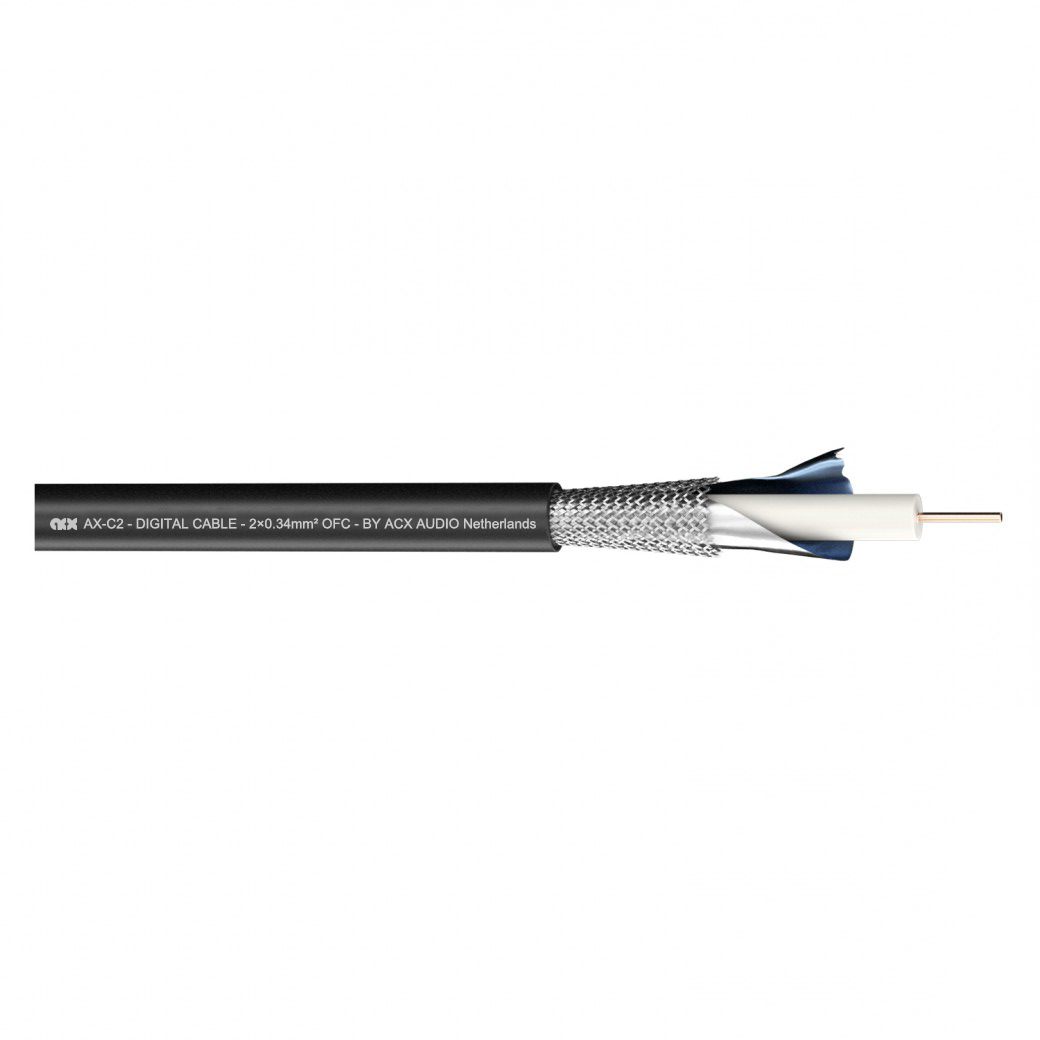

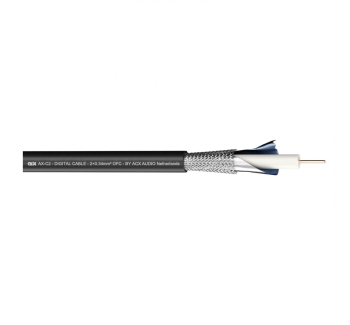

AX-C2
75ohm Coaxial Cable
Ø7 mm - 1x0.34 mm² PVC
Part. No.: 23-0015
| General | |
| Part number : | 23-0015 |
| Cable model: | AX-C2 |
| Cable type; | Coaxial Cable |
| Properties: | Digital |
| Conductor material: | OFC |
| Application area: | AV/audio |
| Application type: | Indoor |
| Application of voltage: | Low voltage |
| Standards: | Fca |
| Construction | |
| Jacket material : | PVC |
| Colour | black |
| Jacket shape; | round |
| Jacket diameter [mm]: | 7 |
| Conductor ; | 1×0.34 mm² |
| AWG: | 22 |
| Copper construction mm: | 7×00.25 |
| Weight g/m: | 50 |
| Packing m: | 200 m |
| Min.bending radius | 35 |
| Min.temperature [C]: | -20 |
| Max.temperature [C]: | 70 |
| Electrical Data | |
| Capacitance pF/m | 75 |
| Conductor resistance Ω/km | <60 |
| Max.operating voltage V | 300 |
