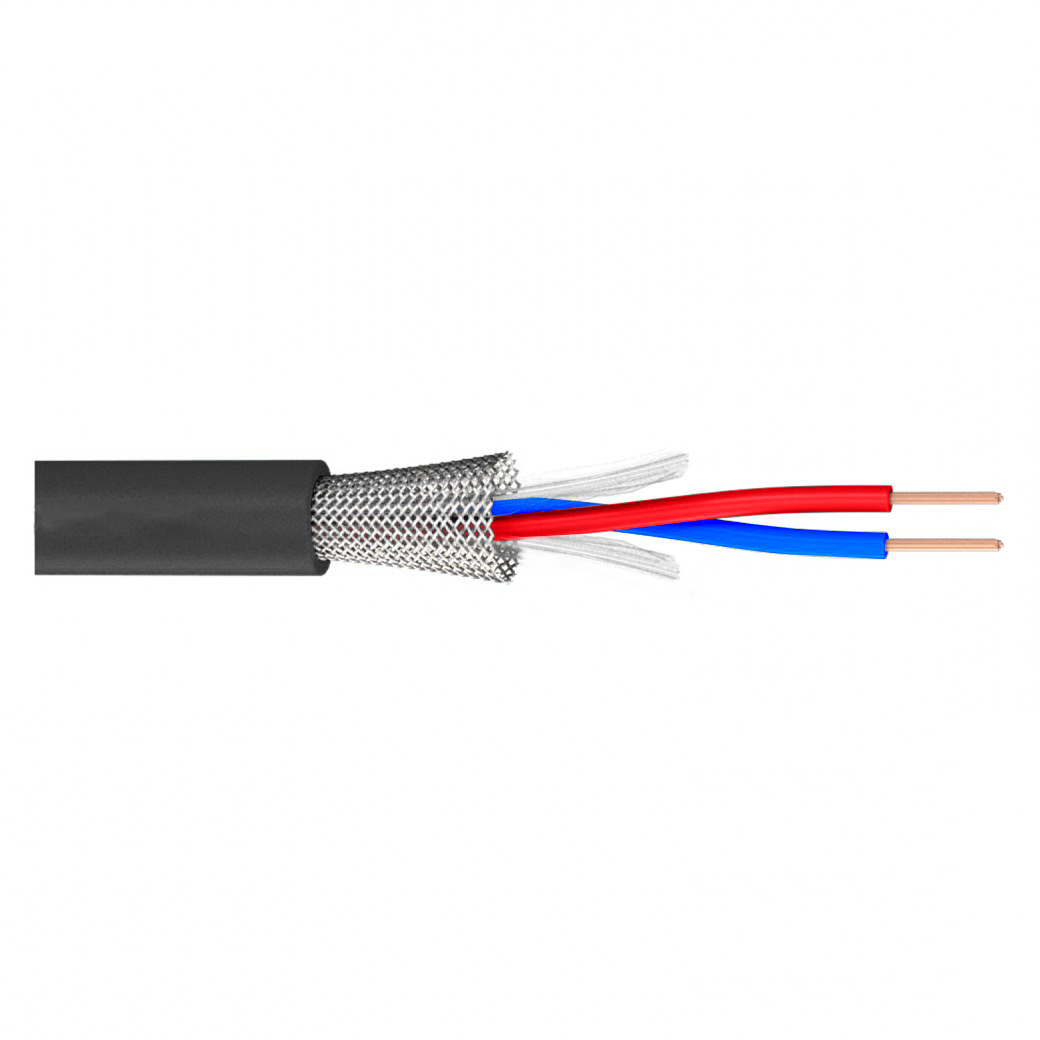

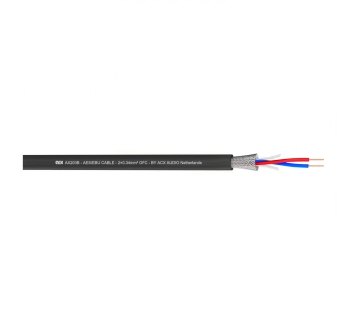

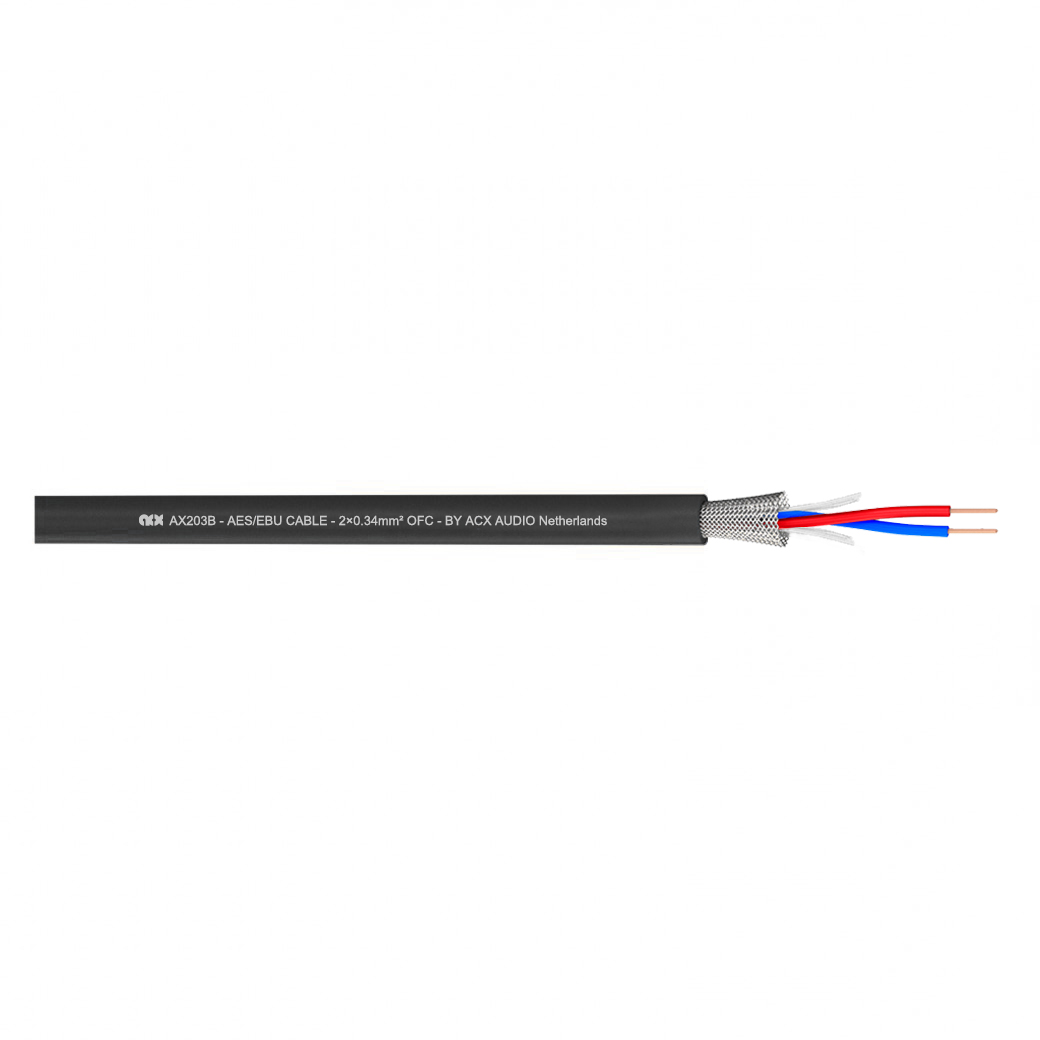

AX203B
Digital Cable AX203B
PVC Ø6.5mm - 2x0.34 mm²
Part. No.: BC0014
| General | |
| Part number : | BC0014 |
| Cable model: | AX203B |
| Cable type; | AES/EBU Cable |
| Properties: | Digital |
| Conductor material: | OFC |
| Application area: | Stage /live |
| Application type: | Mobile outdoor/indoor |
| Application of voltage: | Low voltage |
| Standards: | CE/Rosh |
| Construction | |
| Jacket material : | S-PVC |
| Colour: | black |
| Jacket shape; | round |
| Jacket diameter [mm]: | 6.5 |
| Conductor ; | 2×0.34 mm² |
| AWG: | 22 |
| Copper construction mm: | 7 × Ø 0.25 |
| Insulation material : | FEP |
| Conductor shielding: | Tined copper braided |
| Weight kg/roll： | 9kg |
| Packing m/roll ： | 200 |
| Min.bending radius: | 33 |
| Min.temperature [C]: | -30 |
| Max.temperature [C]: | 70 |
| Electrical Data | |
| Surge impedance ohm | 110 |
| Conductor resistance Ω/km | <60 |
| Max.operating voltage V | 300 |
