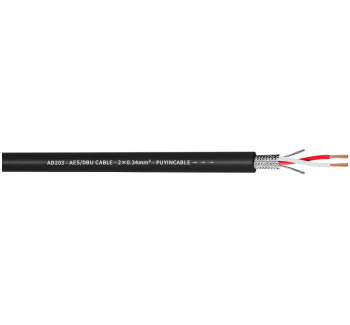

AD203
AES/EBU Cable AD203
PVC Ø6 mm - 2x0.34mm²
Part. No.: 24-0308
| General | |
| Part number : | 24-0308 |
| Cable model : | AD203 |
| Cable type : | AES/EBU Cable |
| Properties : | Digital 110ohm |
| Conductor material : | OFC |
| Application area : | Stage / live |
| Application type : | Mobile outdoor / indoor |
| Application of voltage : | Low voltage |
| Construction | |
| Jacket material : | PVC |
| Colour : | black |
| Jacket shape : | round |
| Jacket diameter [mm] : | 6 |
| Conductor : | 2 × 0.34 mm² |
| AWG : | 22 |
| Copper construction mm : | 7 × Ø 0.25 |
| Weight kg/roll： | 11kg |
| Packing m/roll ： | 200 |
| Min. bending radius | 30 |
| Min. temperature [°C] : | -20 |
| Max. temperature [°C] : | 70 |
| Electrical Data | |
| Capacitance pF/m | 43 |
| Conductor resistance Ω/km | <60 |
| Max. operating voltage V | 300 |
