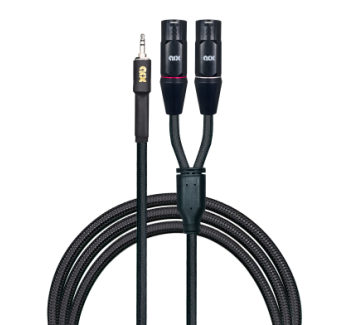

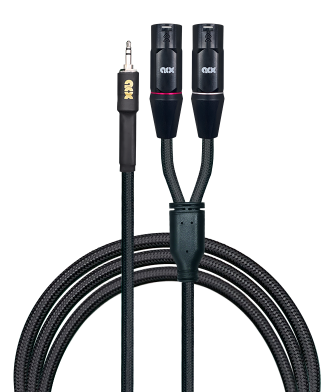

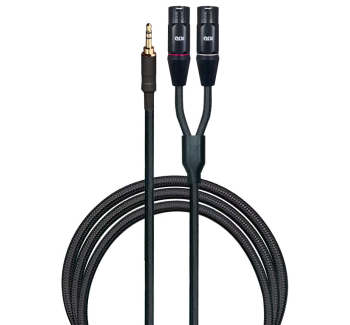

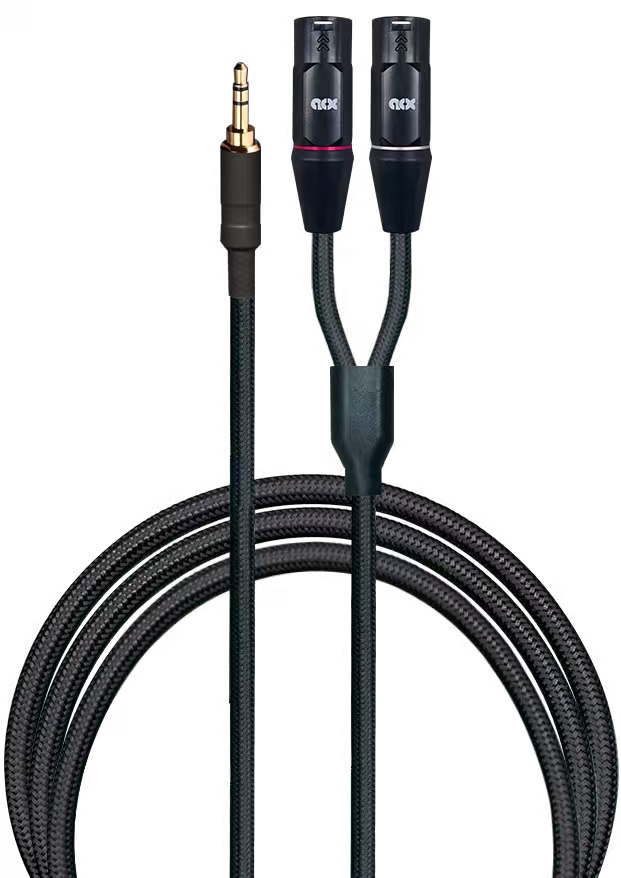

ACX 3.5/XLR Splitter Cable
3.5mm Headphone Y-split audio cable
Ø5.0mm-24/26AWG-2×0.22mm²PVC
3.5 to 2XLR
Part. No.: 3.5/XLR-ACX0403
| Materials | |
| Cable : | 99.99% high-purity oxygen-free copper conductor |
| Exterior : | Black nylon braided mesh |
| Connector : | TRS 3.5mm stereo plug |
| Terminal : | Silver-plated XLR connector |
| General | |
| Cable model : | USB-C/XLR |
| Part Number Model Code : | ACX0403-1(Length:1.0m) ACX0403-1.5(Length:1.5m) ACX0403-3(Length:3.0m) |
| Cable type : | 3.5mm Headphone Y-split audio cable |
| Properties : | Analog |
| connectors 1 model: | ACX TRS3.5 |
| connectors 1 | 3.5 Headphone plug mini TRS |
| contact 1 | Silver-plated |
| connectors 1 model: | NEUTRIK NC3MXX |
| connectors 2 | XLR 3p male |
| contac 2 | Gold-plated |
| Packing m : | 1.5M |
| Application area : | Stage / live |
| Application type : | Mobile outdoor / indoor |
| Application of voltage : | Low voltage |
Standard 3.5mm headphone jack for audio players with headphone outputs.
XLR stereo dual-channel balanced analog signal output.
Flexible cable for easy coiling and portability with multiple length options.
This Y-split audio cable series uses HiFi-grade materials.
Offering excellent cost-performance ratio for connecting with traditional HiFi audio cables.
A balanced output cable for portable high-resolution music players.
