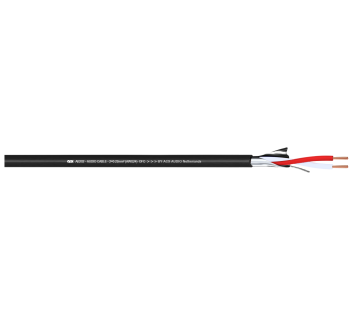

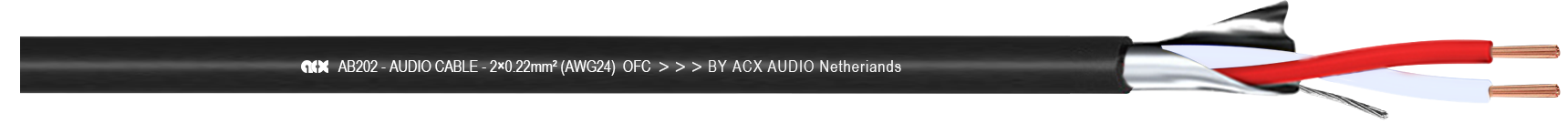

AB202
Analog Cable
PVC Ø3.5mm - 2x0.22 mm²
Part. No.: BC0302
| General | |
| Part number : | BC0302 |
| Cable model : | AB202 |
| Cable type : | Analog Cable |
| Properties : | Analog |
| Conductor material : | 99.95% Copper |
| Application area : | Stage / live |
| Application type : | indoor |
| Application of voltage : | Low voltage |
| Standards : | CE/Rosh |
| Construction | |
| Jacket material : | PVC |
| Colour : | black |
| Jacket shape : | Twist shape |
| Jacket diameter [mm] : | 3.5 |
| Conductor : | 2 × 0.22 mm² |
| AWG : | 24 |
| Copper construction mm : | 19 × Ø 0.12 |
| Insulation material : | PE |
| Conductor shielding: | PT AL foil + Tined filler strand |
| Weight kg/roll： | 4.5kg |
| Packing m/roll ： | 200 |
| Min. bending radius | 18 |
| Min. temperature [°C] : | -20 |
| Max. temperature [°C] : | 70 |
| Electrical Data | |
| Capacitance pF/m | 75 |
| Conductor resistance Ω/km | <85 |
| Max. operating voltage V | 300 |
