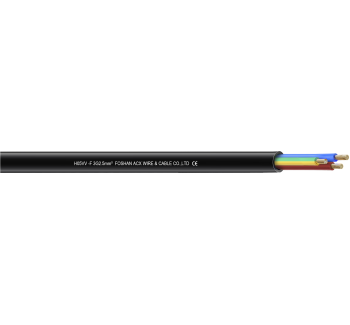

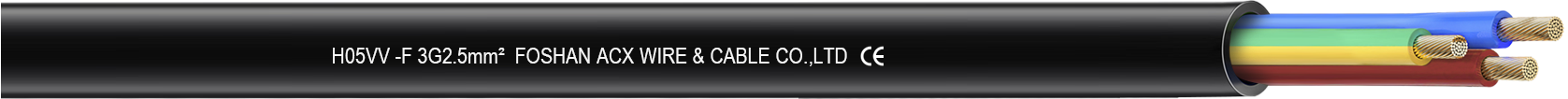

3G2.5
Pure Copper Power Cable
PVC Ø10.5m - 3x2.5 mm²
Part. No.: BC0705
| General | |
| Part number | BC0705 |
| Cable model | 3G2.5 |
| Cable type | Power Cable |
| Properties | Audio power cable |
| Conductor material | 99.95% Pure Copper |
| Application area | Stage / live |
| Application type | Installation / indoor |
| Application of voltage | Low voltage |
| Standards | CE |
| Construction | |
| Jacket material | PVC |
| Colour : | black |
| Jacket shape | round |
| Jacket diameter [mm] | 10.5 |
| Conductor | 3 × 2.5 mm² |
| AWG | 13 |
| Copper construction mm | 49 × Ø 0.25 |
| Insulation material | PVC |
| Weight kg/roll | 16.4kg |
| Packing m/roll | 100 m |
| Min. bending radius | 63 |
| Min. temperature [°C] | -20 |
| Max. temperature [°C] | 70 |
| Electrical Data | |
| Capacitance pF/m | 141 |
| Conductor resistance Ω/km | <8 |
| Max. operating voltage V | 300 |
