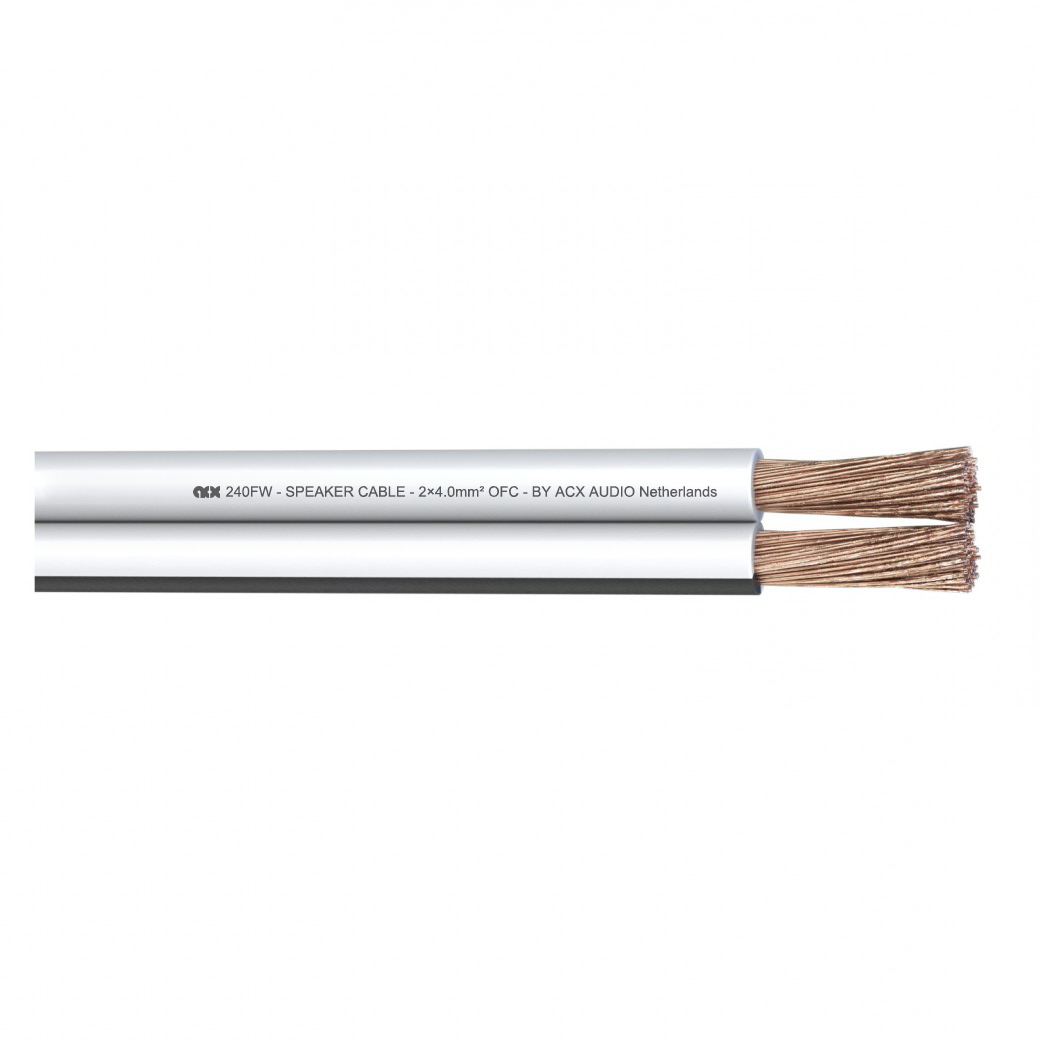

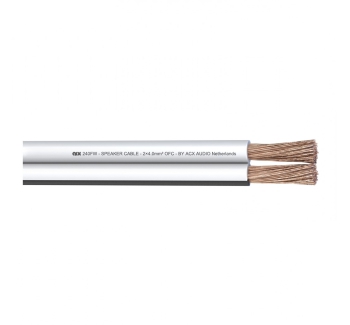

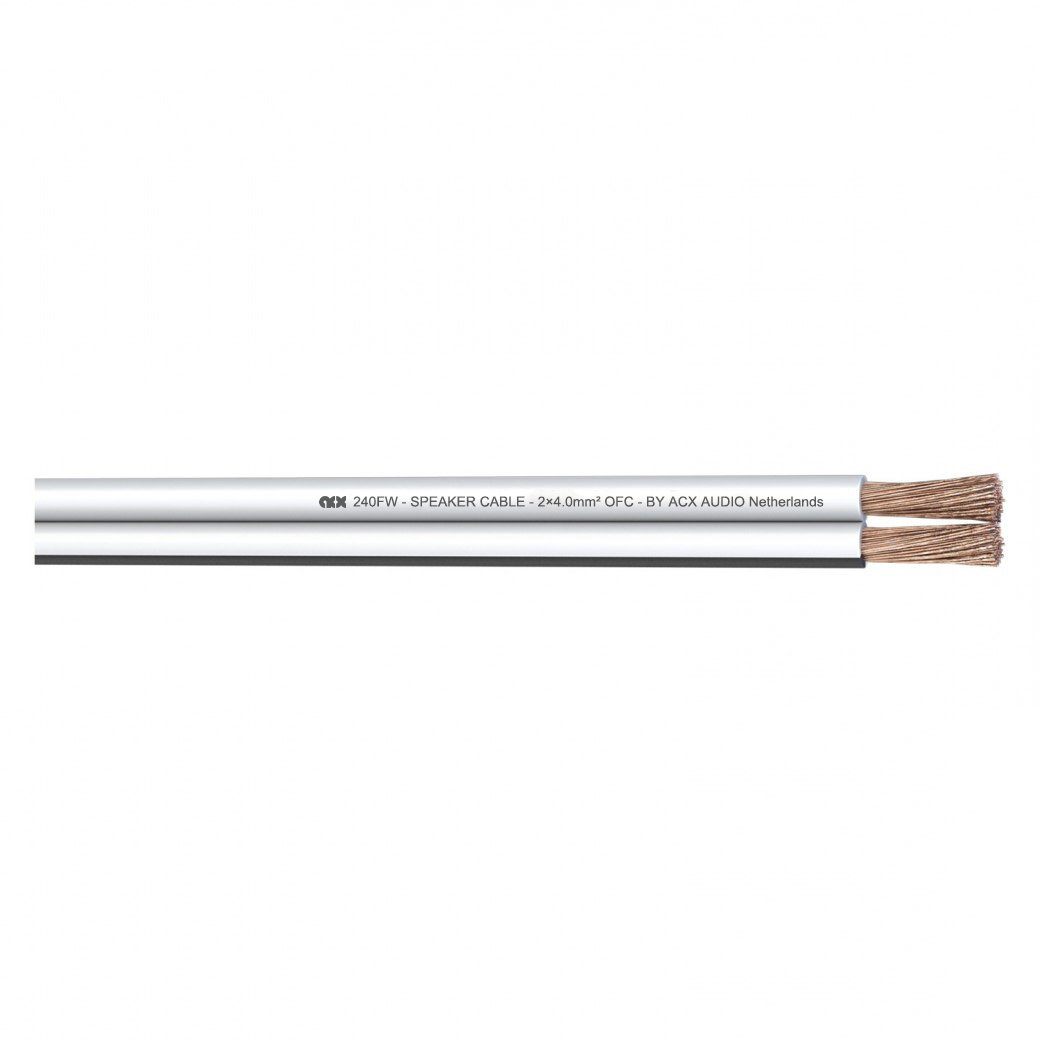

240FW
AV Speaker Cable
4.5*10 mm - 2x4.00 mm² PVC
Part. No.: 23-0067
AV Speaker Cable
4.5*10 mm - 2x4.00 mm² PVC
Part. No.: 23-0067
General | |
Part number: | 23-0067 |
Cable model: | 240FW |
Cable type; | Speaker Cable |
Properties: | Analog |
Conductor material: | OFC |
Application area: | AV /home |
Application type: | Indoor |
Application of voltage: | Low voltage |
Standards: | Fca |
Construction | |
Jacket material : | PVC |
Colour | white |
Jacket shape; | flat |
Jacket diameter [mm]: | 4.5x10 |
Conductor ; | 2×4.00 mm² |
AWG: | 11 |
Copper construction mm: | 511×00.10 |
Weight g/m: | 110 |
Packing m: | 100 m |
Min.bending radius | 30 |
Min.temperature [C]: | -20 |
Max.temperature [C]: | 70 |
Electrical Data | |
Capacitance pF/m | 60 |
Conductor resistance Ω/km | <4.5 |
Max.operating voltage V | 300 |
