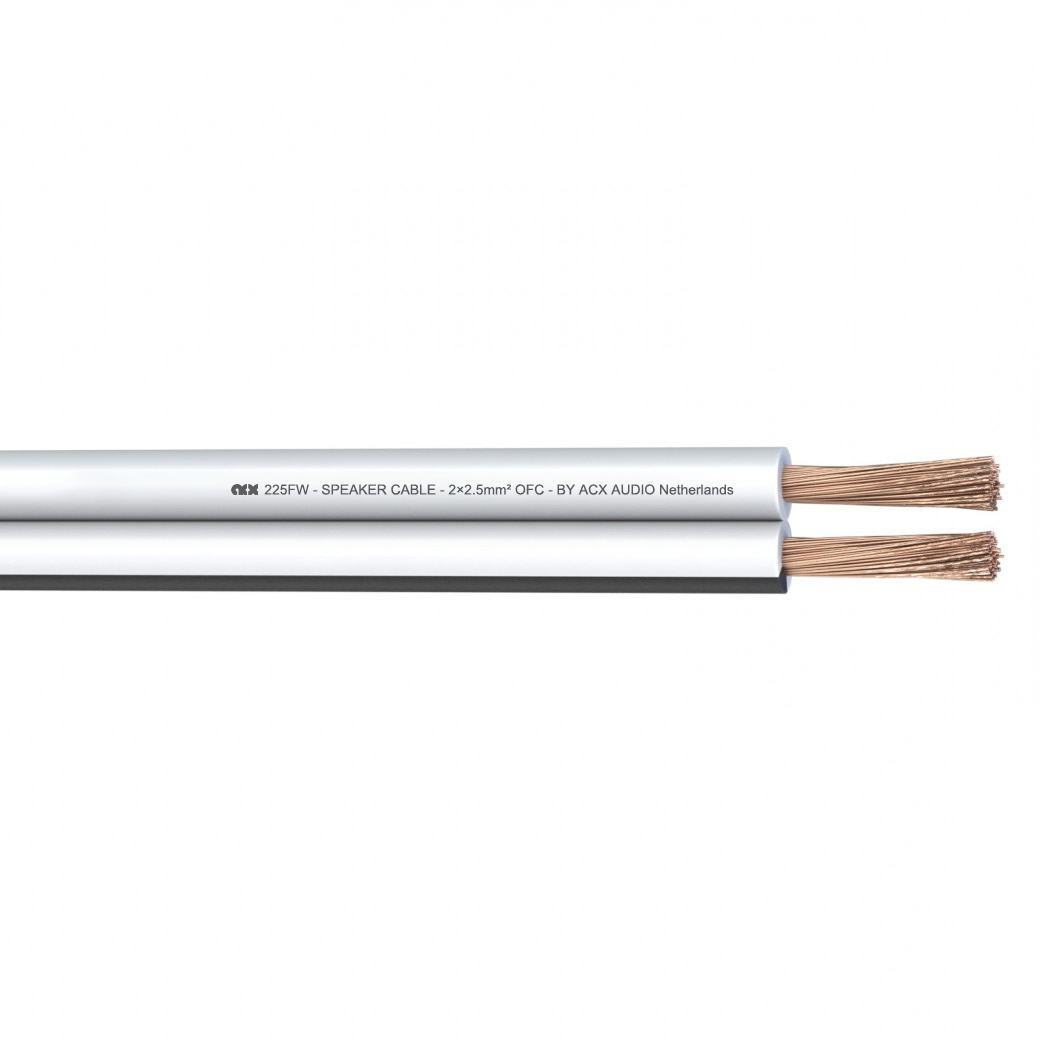

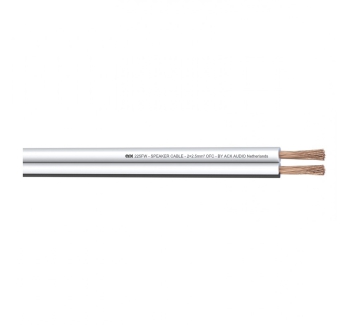

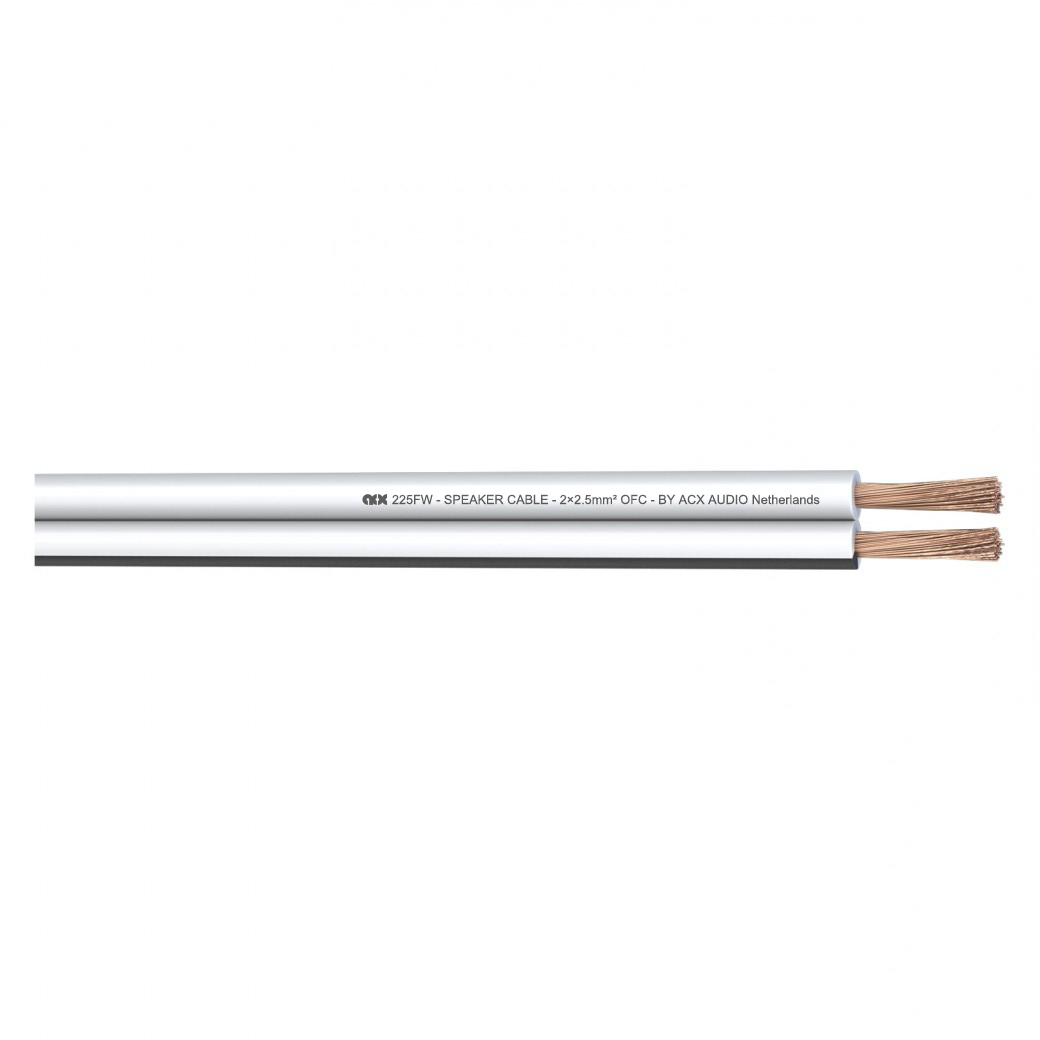

225FW
AV Speaker Cable
4*8 mm - 2x2.50 mm² PVC
Part. No.: 23-0066
| General | |
| Part number ： | 23-0066 |
| Cable model : | 225FW |
| Cable type： | Speaker Cable |
| Properties: | Analog |
| Conductor material: | OFC |
| Application area: | AV/home |
| Application type: | Indoor |
| Application of voltage: | Low voltage |
| Standards: | Fca |
| Construction | |
| Jacket material : | PVC |
| Colour: | white |
| Jacket shape: | flat |
| Jacket diameter [mm]: | 4x8 |
| Conductor ; | 2×2.50 mm² |
| AWG: | 13 |
| Copper construction mm: | 140 × Ø 0.15 |
| Weight kg/roll | 16.3kg |
| Packing m/roll | 200 |
| Min.bending radius | 20 |
| Min.temperature [C]: | -20 |
| Max.temperature [C]: | 70 |
| Electrical Data | |
| Capacitance pF/m | 68 |
| Conductor resistance Ω/km | <8 |
| Max.operating voltage V | 300 |
