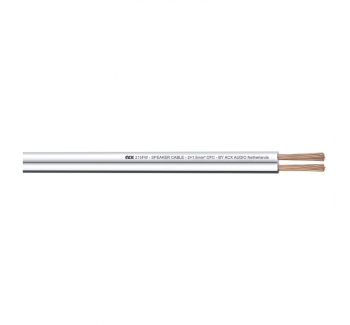

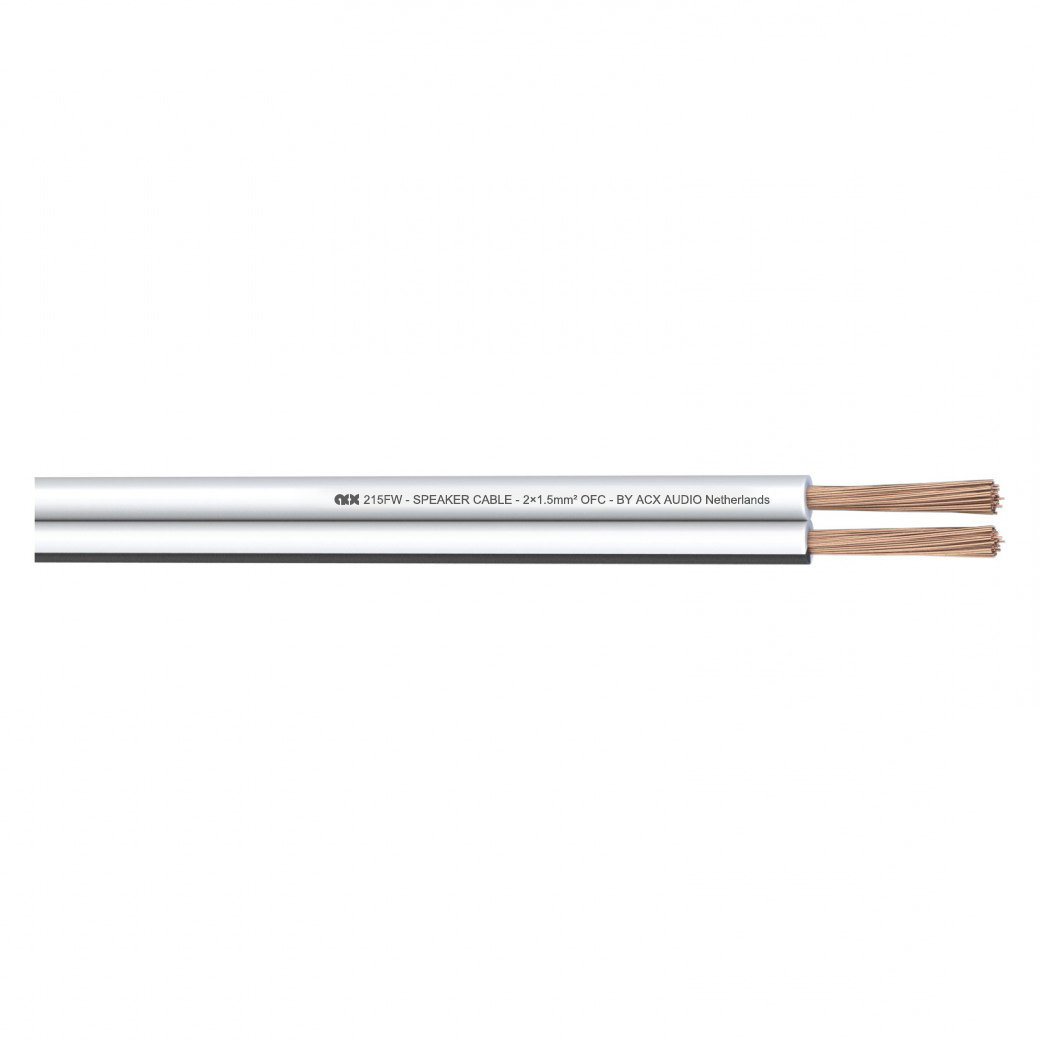

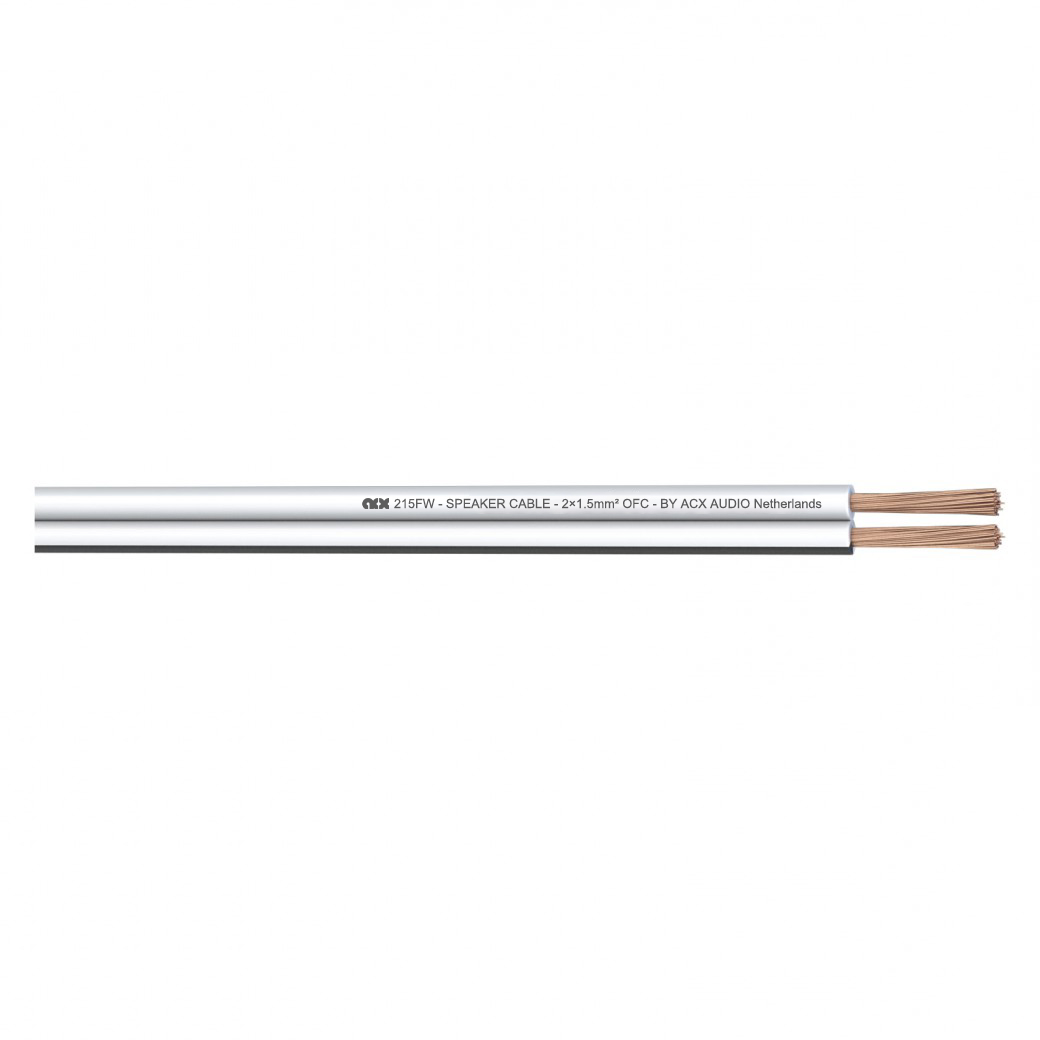

215FW
AV Speaker Cable
3.5*7 mm - 2x1.50 mm² PVC
Part. No.: 23-0065
| General | |
| Part number : | 23-0065 |
| Cable model: | 215FW |
| Cable type; | Speaker Cable |
| Properties: | Analog |
| Conductor material: | OFC |
| Application area: | AV /home |
| Application type: | Indoor |
| Application of voltage: | Low voltage |
| Standards: | Fca |
| Construction | |
| Jacket material : | PVC |
| Colour | white |
| Jacket shape; | flat |
| Jacket diameter [mm]: | 3.5x7 |
| Conductor ; | 2×1.50 mm² |
| AWG: | 15 |
| Copper construction mm: | 84× Ø 0.15 |
| Weight kg/roll: | 11.1kg |
| Packing m/roll: | 200 |
| Min.bending radius | 18 |
| Min.temperature [C]: | -20 |
| Max.temperature [C]: | 70 |
| Electrical Data | |
| Capacitance pF/m | 57 |
| Conductor resistance Ω/km | <13 |
| Max.operating voltage V | 300 |
